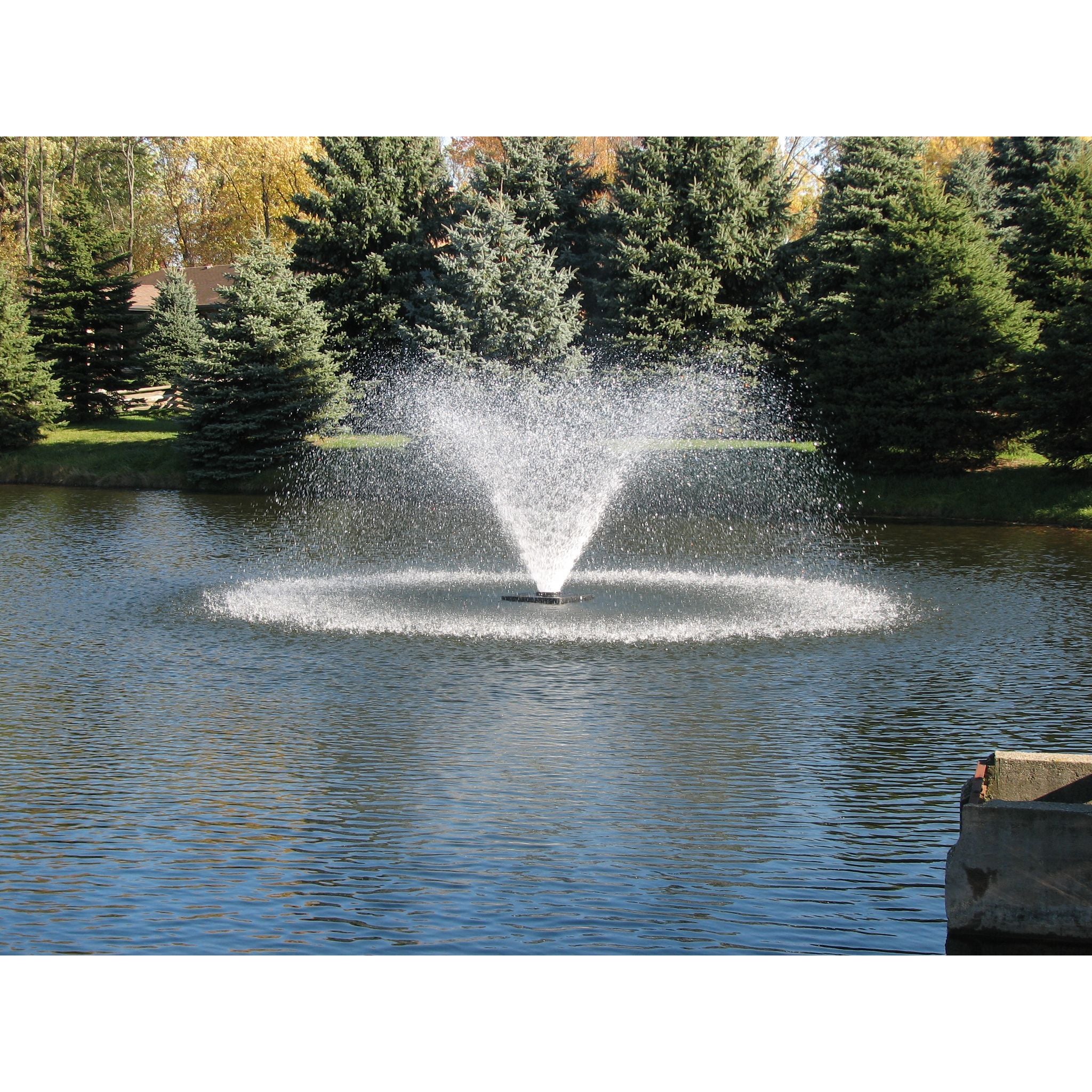

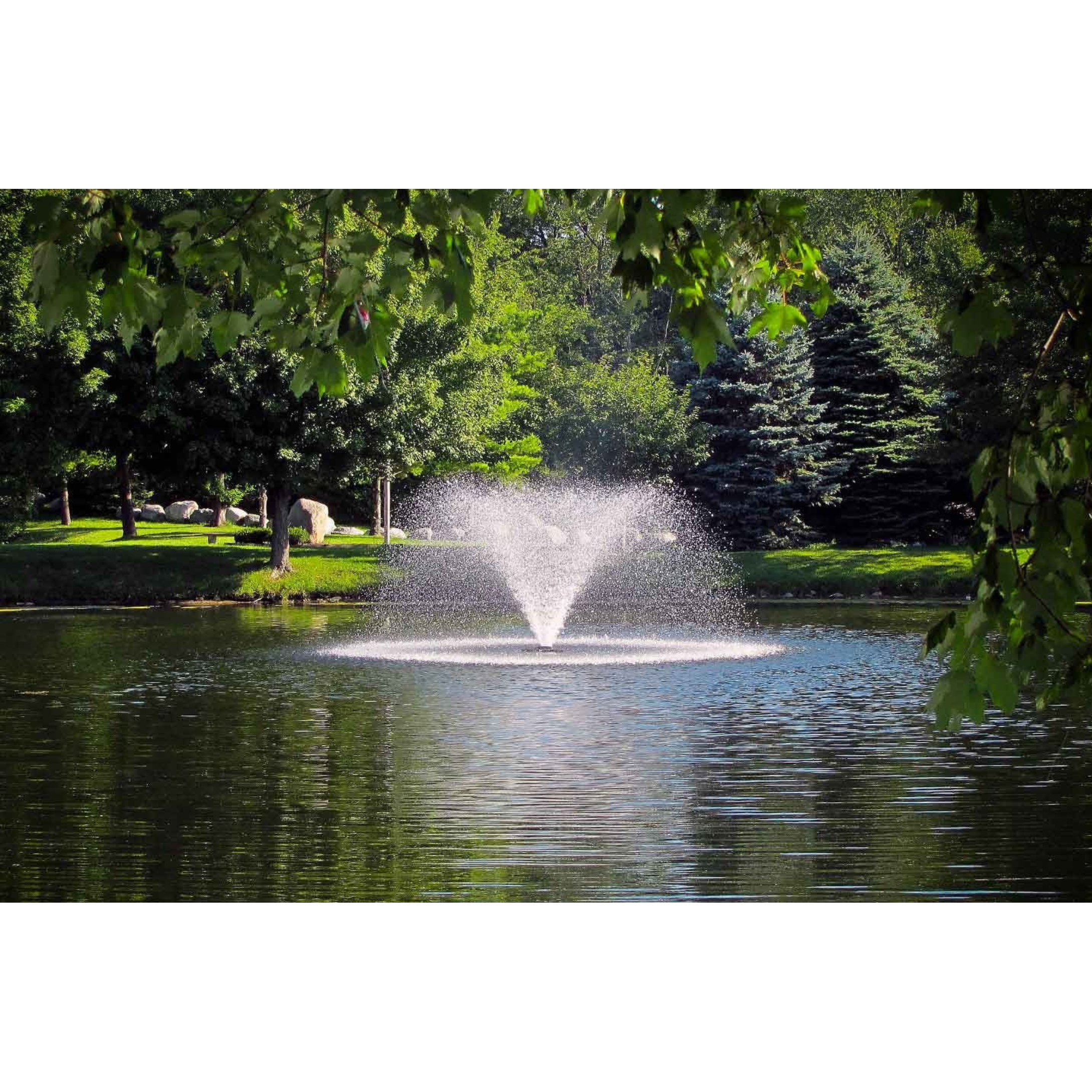

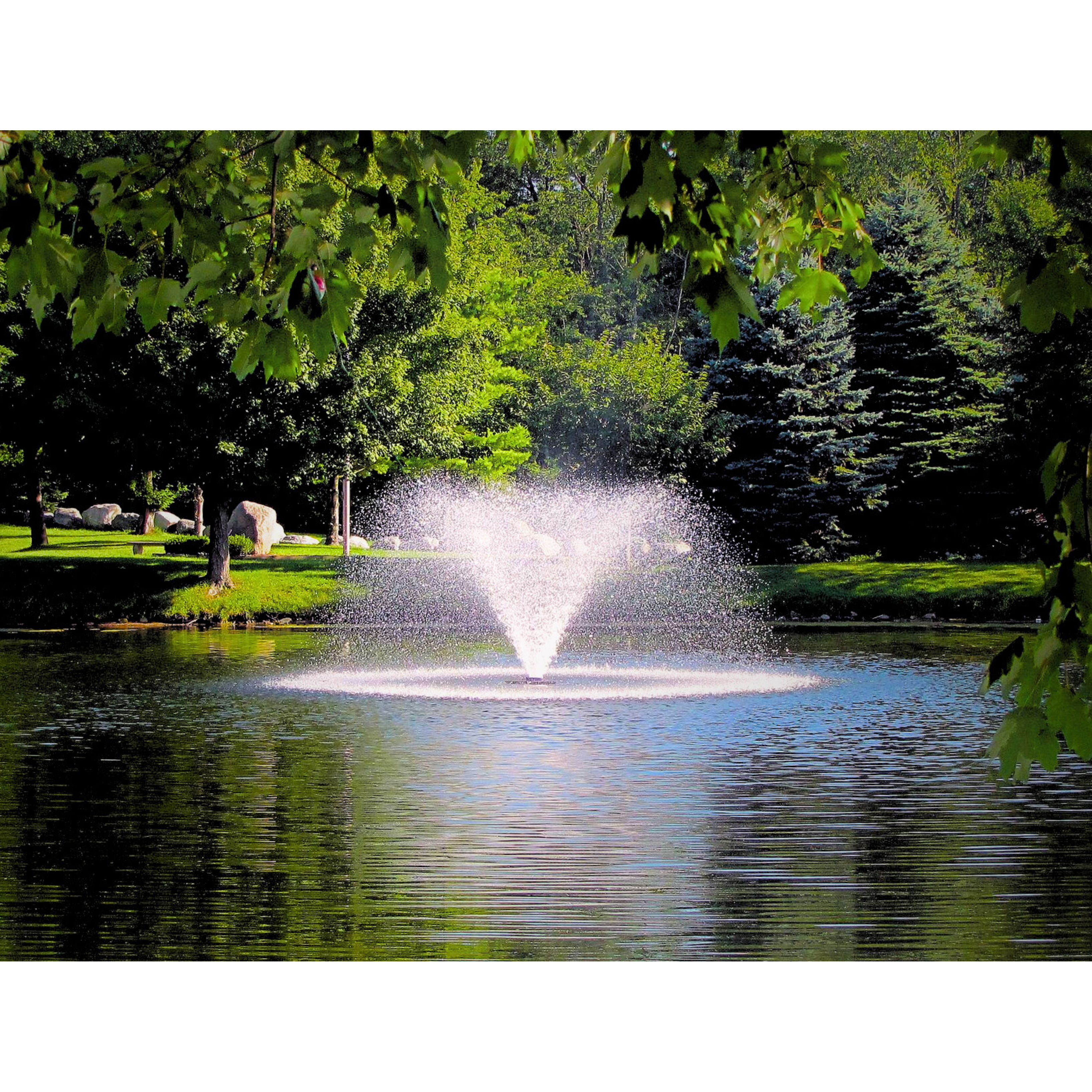

The DA-20 Aeration Fountain
Utilizing the DA-20 display design of pond aerators is an excellent method to encourage a flourishing ecosystem in your lake or pond. This aerator design has been proven effective over time in providing the necessary oxygen to the water, while also eliminating mosquito breeding, preventing odors, and hindering algae growth.
Combining visual appeal with impressive aeration, the DA-20 ensures a healthy water balance by promoting both vertical and horizontal water circulation, and it has been designed to operate continuously all year long with an optional timer available.
Installation is straightforward, and there is no need for any maintenance. Additionally, the size of the spray patterns is adjustable.
Approved for use in fresh or saltwater
Maintenance-free design
5-Year motor warranty
Manufactured In The USA

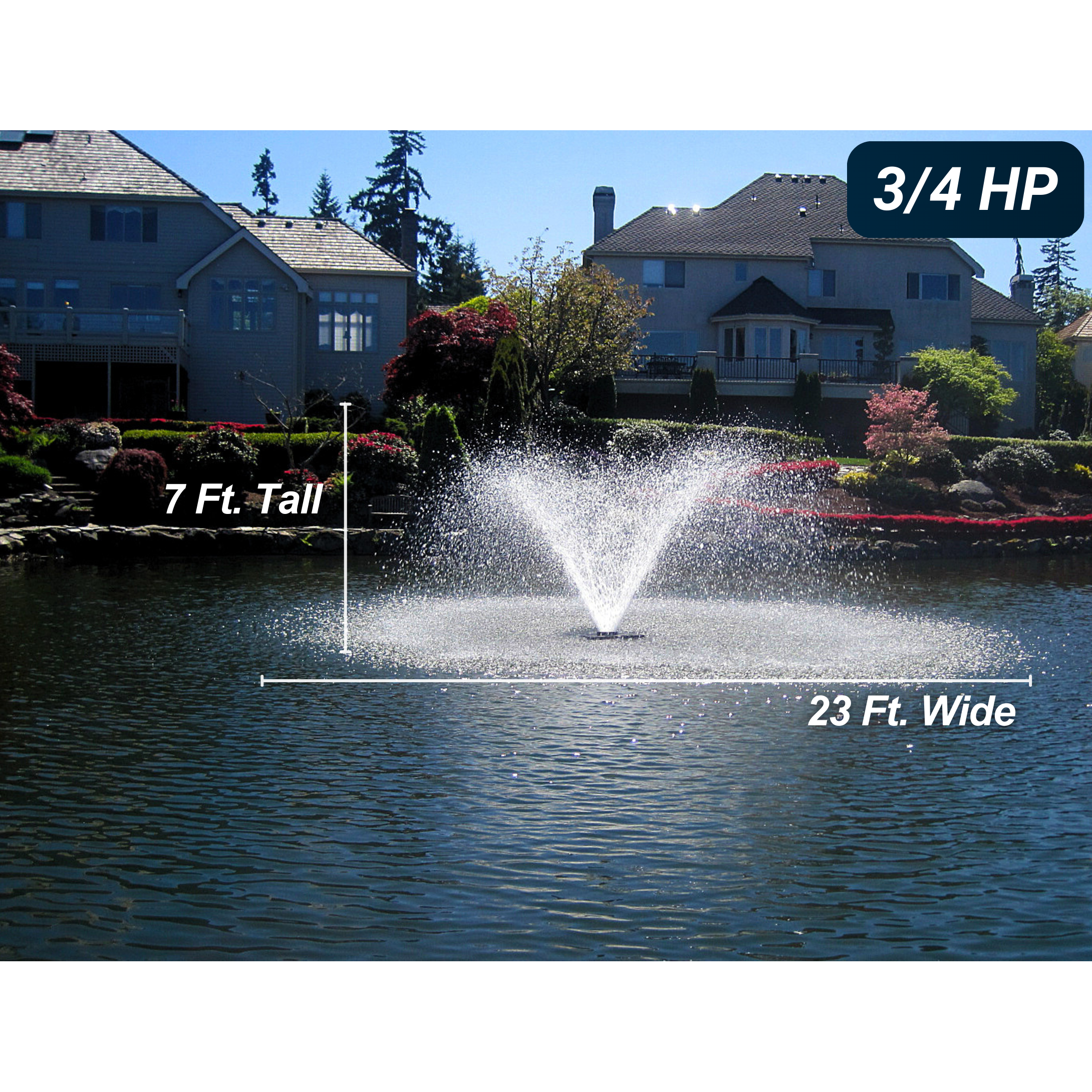

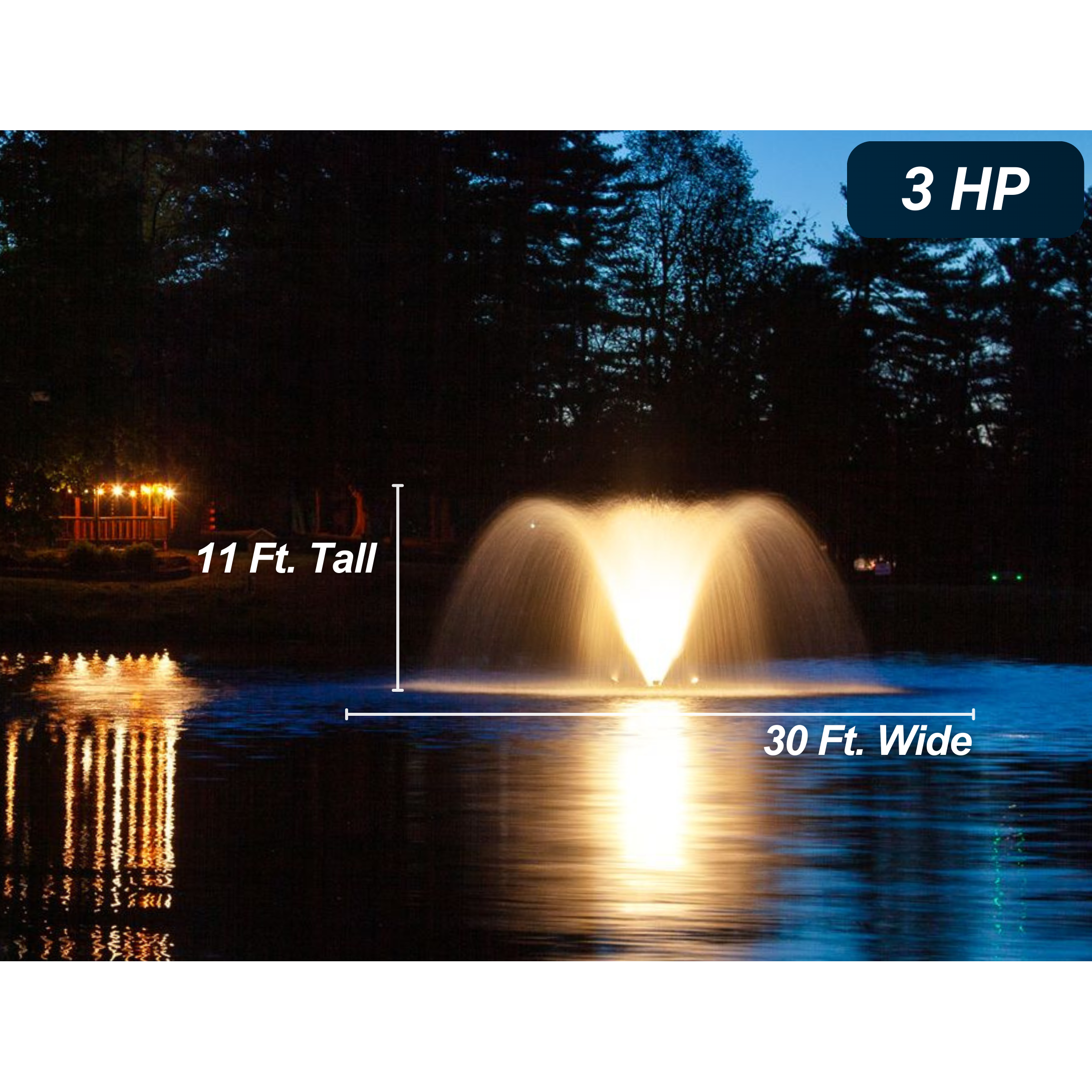

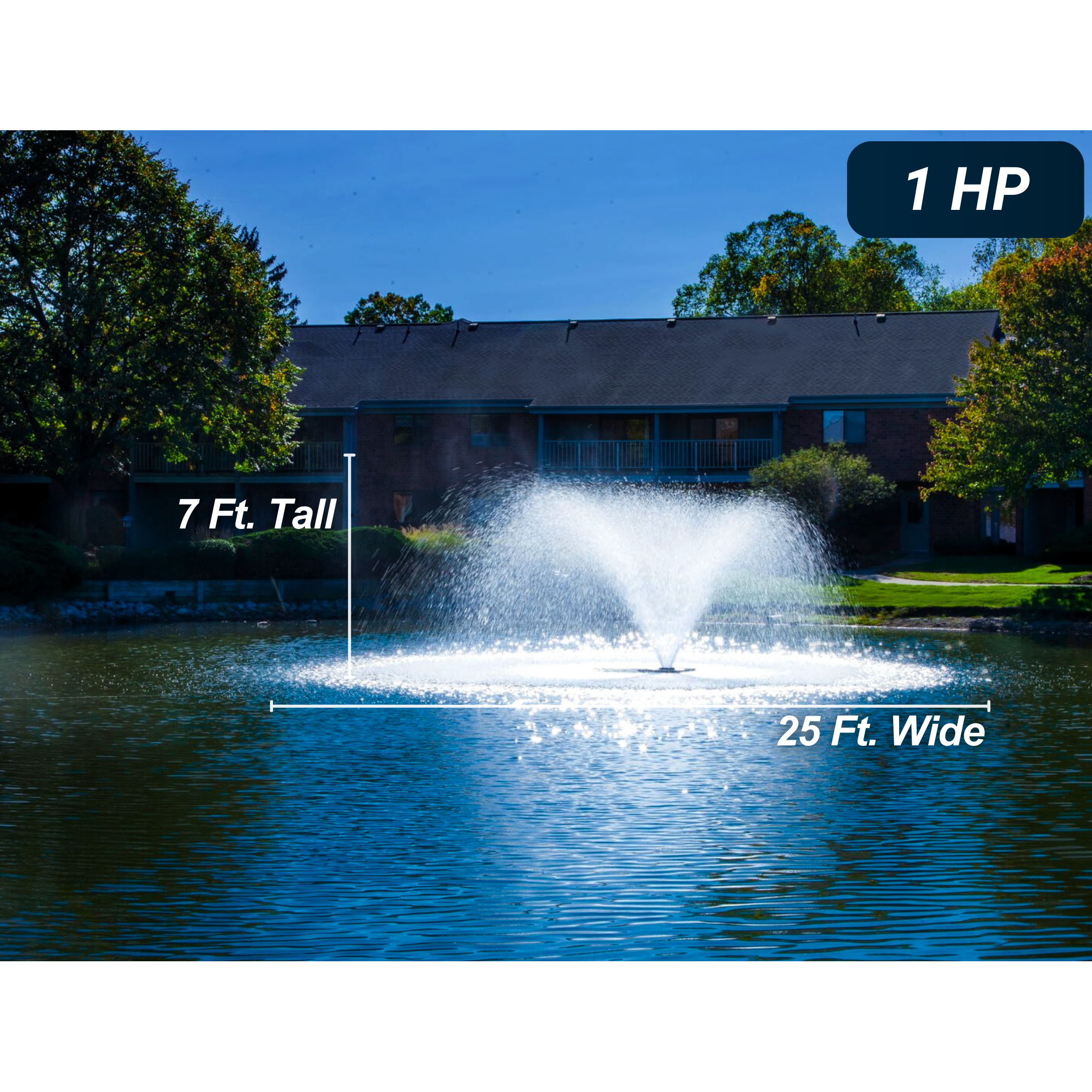

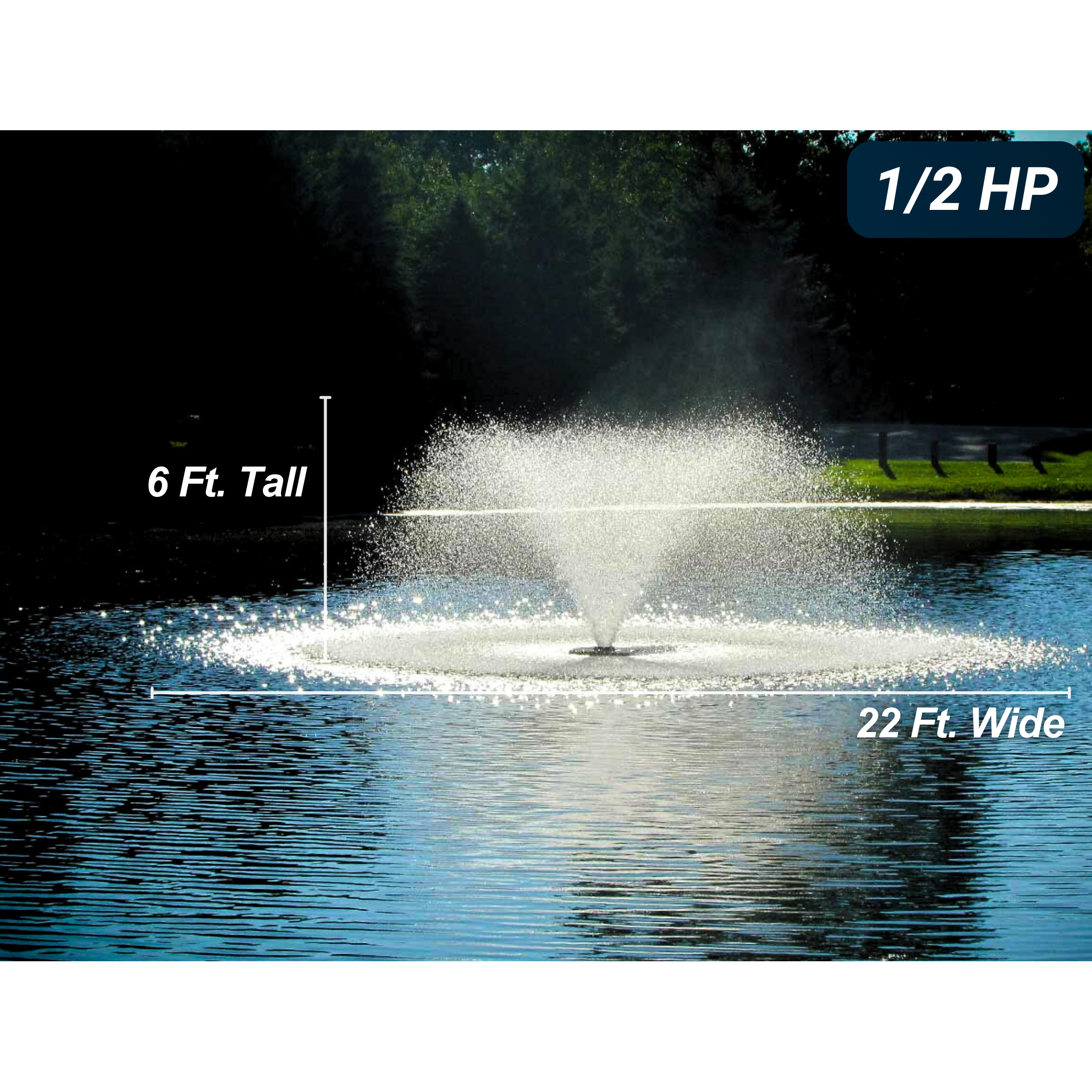

Spray Size / Flow Rate / Suitable Acreage
| HP | Spray Size - Height x Diameter | Flow Rate | Acres |

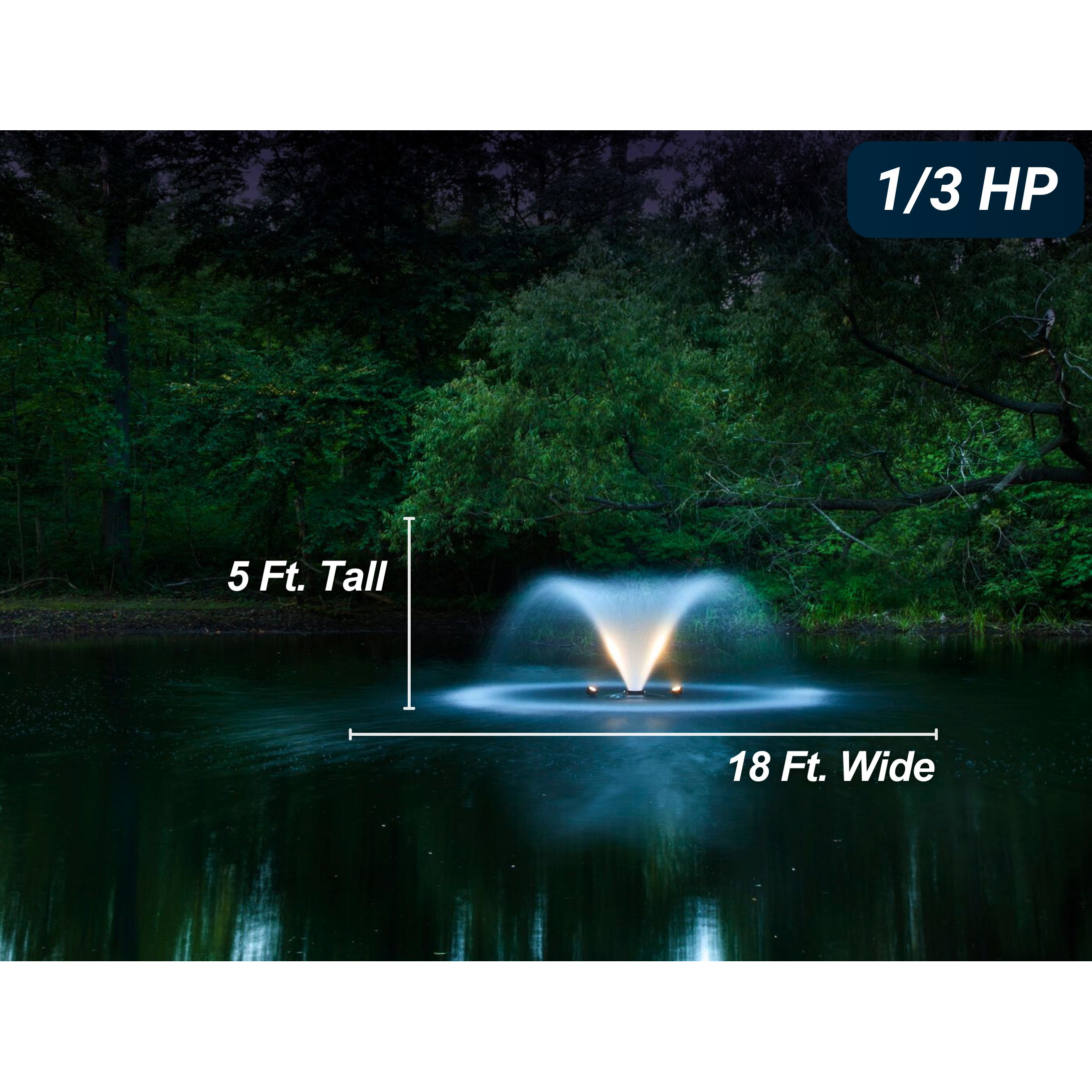

| 1/3 HP | 5 FT x 18 FT | 300 GPM | 1/3 to 3/4 Acre |
| 1/2 HP | 6 FT x 22 FT | 400 GPM | 3/4 to 1 Acre |
| 1 HP | 7 FT x 25 FT | 500 GPM | 1 to 1.5 Acres |

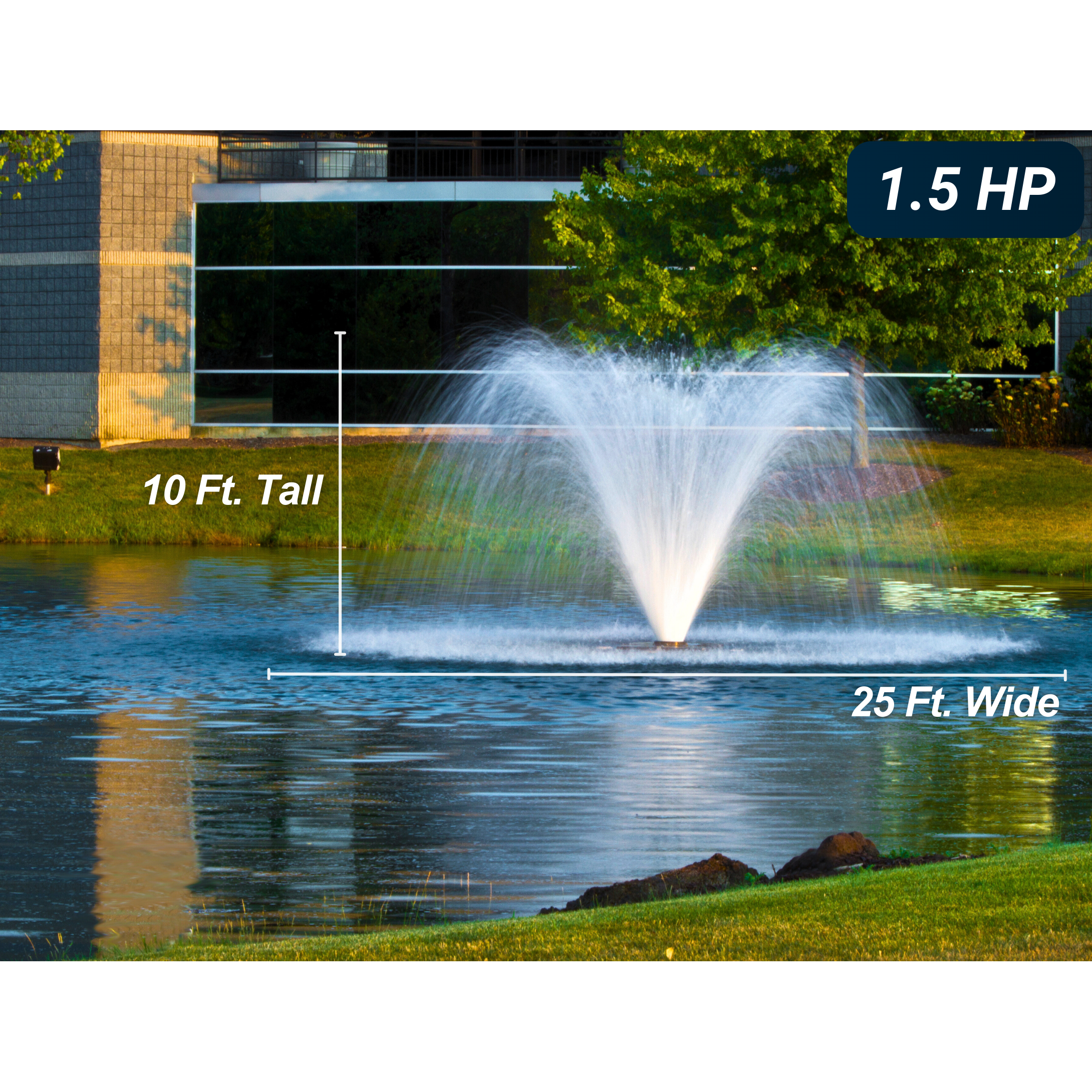

| 1.5 HP | 10 FT x 25 FT | 600 GPM | 1.5 to 2 Acres |

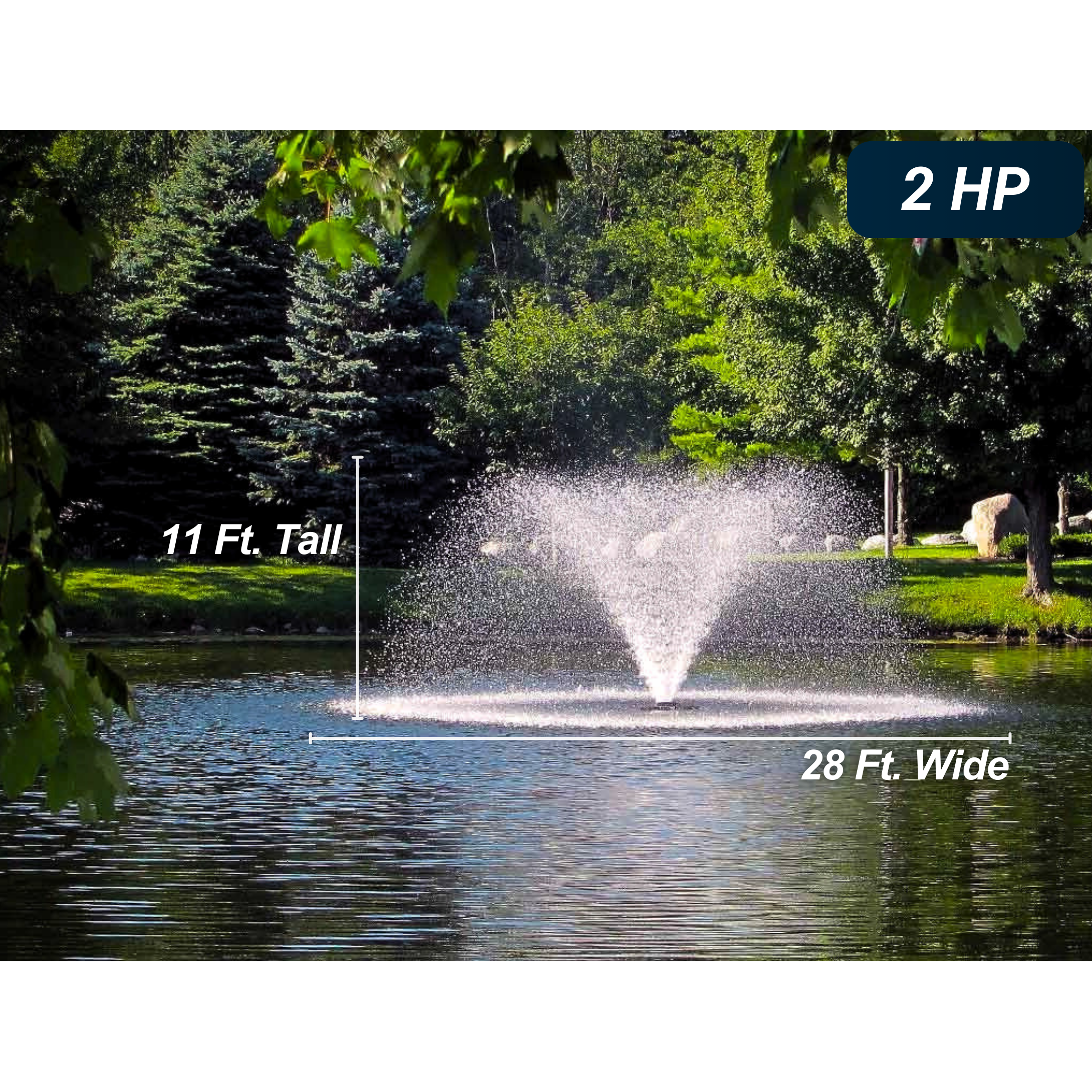

| 2 HP | 11 FT x 26 FT | 700 GPM | 2 to 3 Acres |
| 3 HP | 11 FT x 32 FT | 800 GPM | 3 to 4 Acres + |

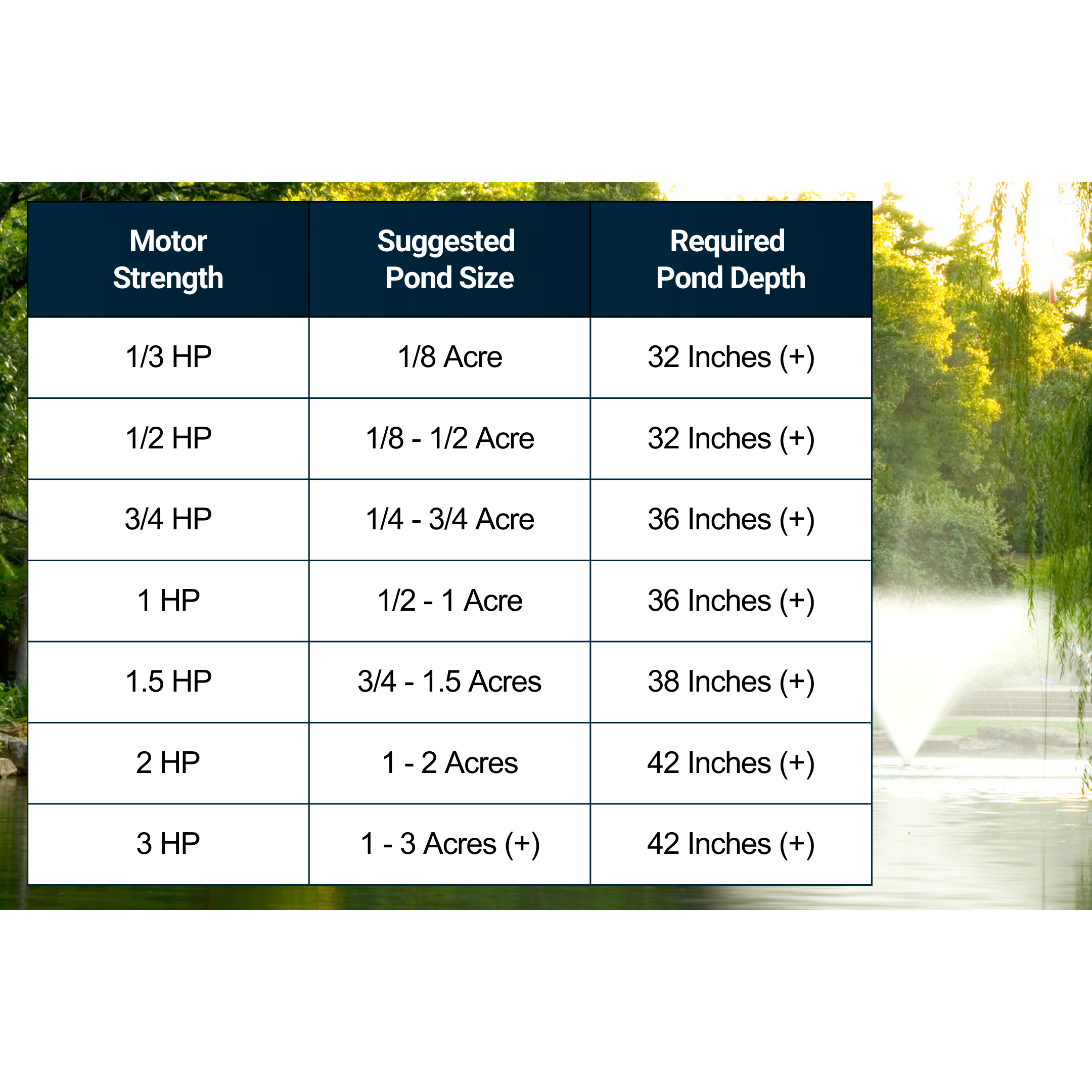

Required Pond Depth
| Horsepower | Required Pond Depth |
| 1/3 HP | 32 Inches (Minimum) |
| 1/2 HP | 34 Inches (Minimum) |
| 1 HP | 36 Inches (Minimum) |
| 1.5 HP | 38 Inches (Minimum) |
| 2 HP | 42 Inches (Minimum) |
| 3 HP | 60 Inches (Minimum) |
Electrical Info
| HP | Voltage | Watts | Amps | HZ |
| 1/3 HP | 115V / 230V | 670W | 8A | 60 |
| 1/2 HP | 115V / 230V | 670W | 10A | 60 |
| 1 HP | 115V / 230V | 1210W | 14A | 60 |
| 1.5 HP | 230V | 1780W | 10.6A | 60 |
| 2 HP | 230V | 2280W | 12.6A | 60 |
| 3 HP | 230V | 3000W | 14A | 60 |
ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.
We strive to help you find the perfect fit for your pond or lake.
The information below is designed to help you make an informed decision when choosing your fountain.
We strongly advise reading through this guide thoroughly to find the best match for your pond's size and needs.
If you can't find what you're looking for, feel free to give us a call.

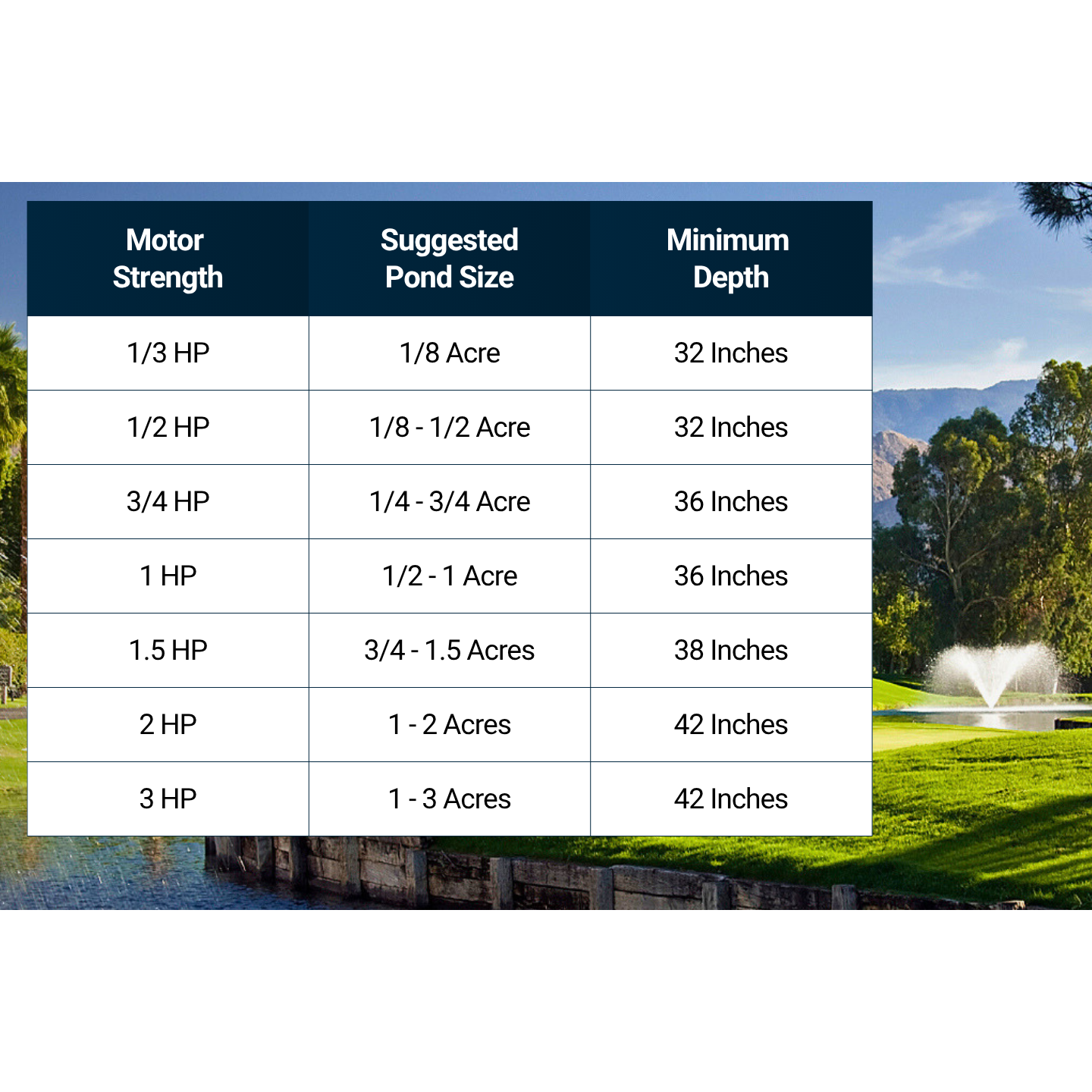

How To Choose Horsepower
The horsepower of your fountain will affect its spray size and flow rate.
Higher horsepower moves more water volume, resulting in a larger spray size.
Ultimately your choice will be dependent upon the size of your pond and the budget you have to work with.
It is advised that you allow enough room between the edge of your pond and your fountains spray. Around 10 FT is a good distance.
How To Choose Voltage
115V: If you're running 115V power to the edge of your pond, you will need to take note of the distance from the pump to the breaker (power cord included).
Use the graph below to figure out the maximum distance.
230V: If you are running 230V power, distance is normally not of any concern.
115V Pump - Maximum Distance Chart
| HP | (115V) - Pump To Breaker MAX Distance |
| 1/3 HP - 115V | 280 FT |
| 1/2 HP - 115V | 250 FT |
| 3/4 HP - 115V | 200 FT |
| 1 HP - 115V | 150 FT |

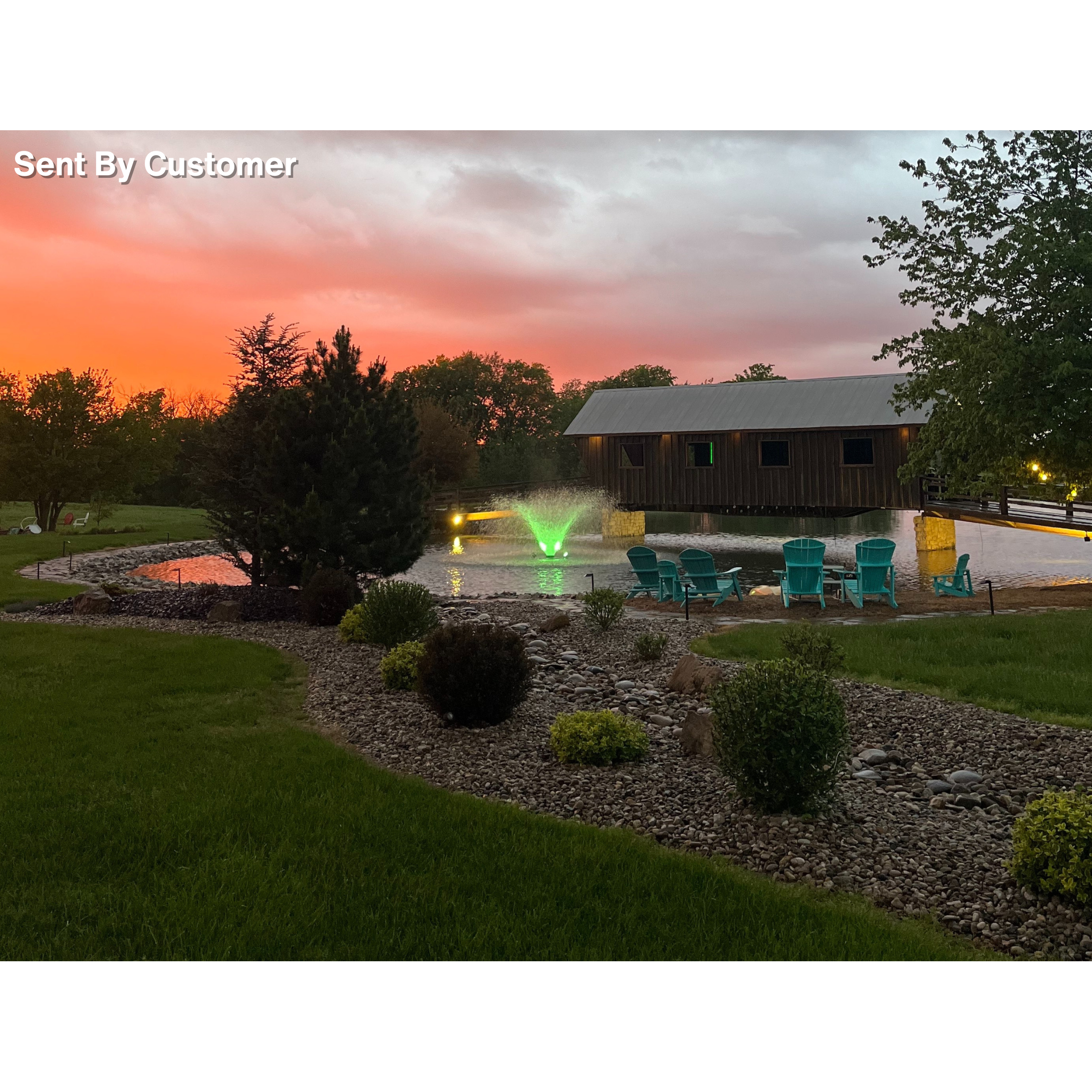

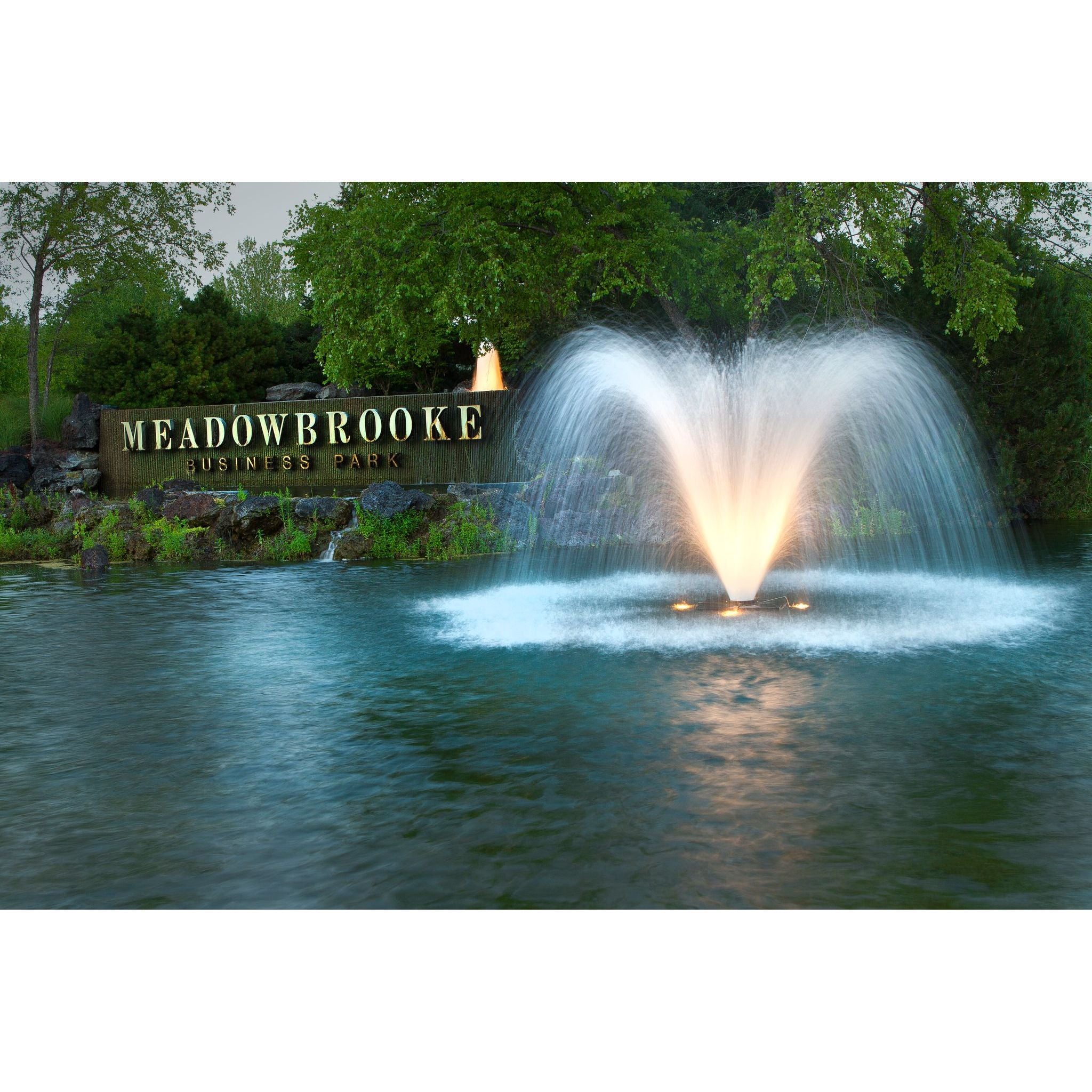

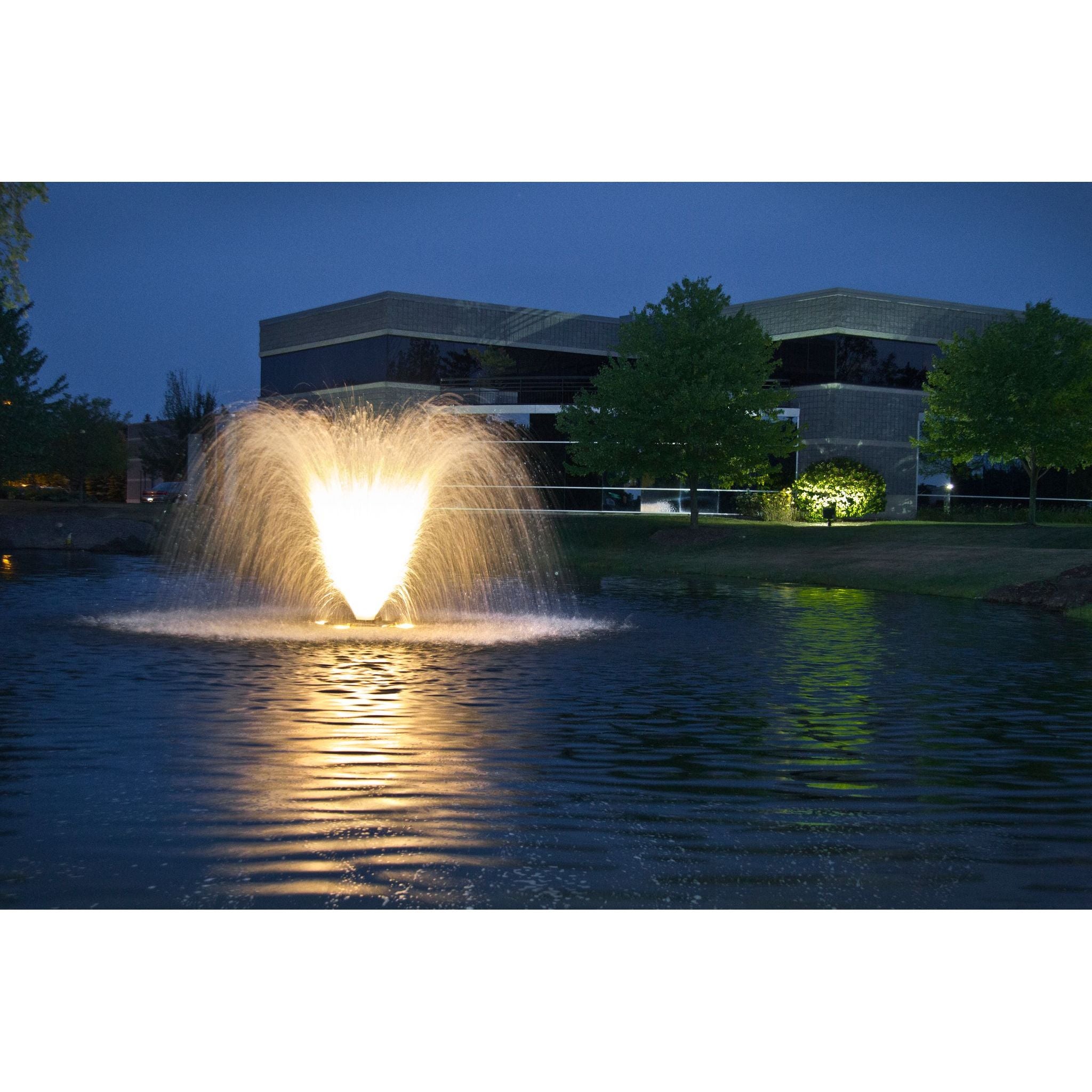

How To Choose Fountain Lights - Optional
Fountain lights are a wonderful addition to increase the aesthetics of your display. You may purchase them right away, or add them later if desired. Installation is simple as they just screw on to the fountain float.
The lights run on 110V power and come with their own dedicated power cord.
Both Warm Glow LED's and Color Changing LED's come with a programmable timer.
The Color Changing LED's come with a remote that operates up to 1,000 FT away!
Which Light Set To Choose
1 HP and less | 2-Light Set is recommended.
1.5 HP - 2 HP | 3-Light Set is recommended.
3 HP and above | 4-Light Set is recommended.
How To Choose A Timer - Optional
Timers are optional and may be purchased now or added later. They are a great way to save energy by keeping your fountain on a schedule.
Please note - The pump timers are made to control fountains only, they do not control lights.
Timer Specs (115V & 230V)
| 115V Timer | 230V Timer |
| Works With 115V Pumps | Works With 230V Pumps |
| 40A Rating | 40A Rating |
WARNING:
Safety should be your top priority. Always use a GFCI and consult with a licensed electrical contractor.
Always carefully read the instructions included with your product. Failure to follow the manufacturers instructions may result in permanent damage to your product which could void the warranty.
