Fountain Timer

115V Timer Information

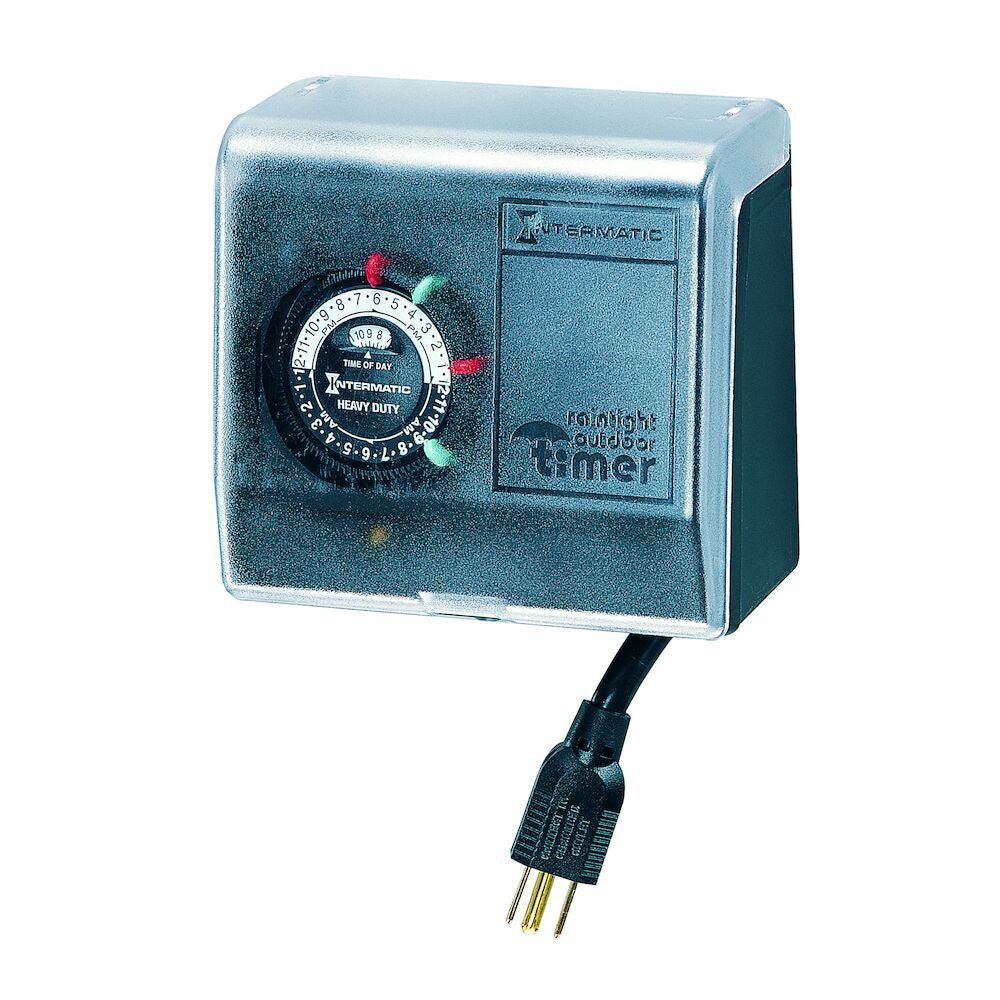

A reliable, durable outdoor timer for fountains and aerators. Simply plug the timer into your GFI-protected outlet, then plug your aerator, fountain or light-set plugs directly into the timer. It's that easy!

• Outdoor-grade plastic case measures 5 inches (12.7 cm) high by 5½ inches (13.97 cm) wide by 3¾ inches (9.52 cm) deep.

• 3-foot cord with three-prong, grounded plug, all outdoor-grade.

• 24-hour timer with 23½-hour maximum On time. Comes standard with two On and two Off trippers. Dial will accept up to 12 sets of trippers.

230V Timer Information

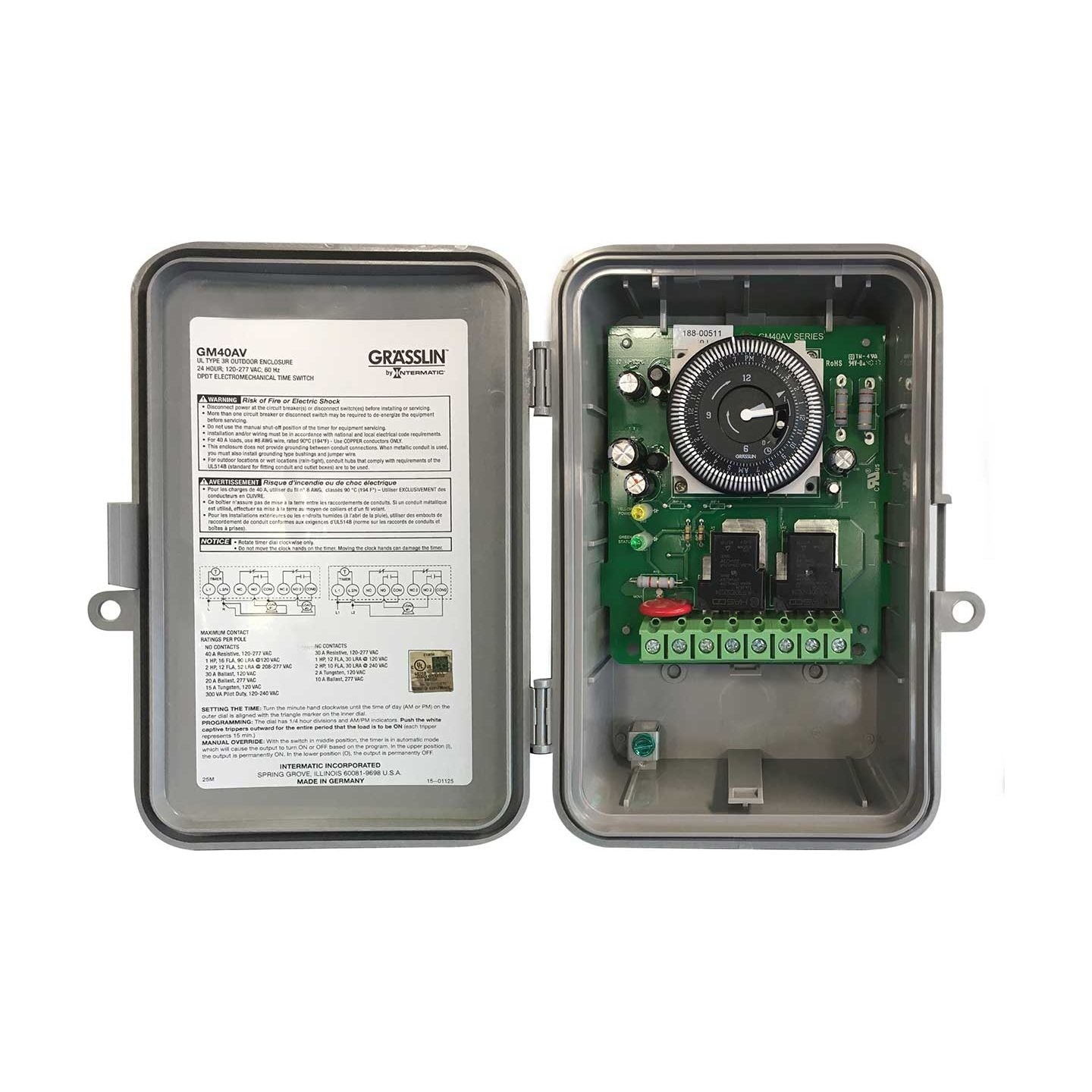

This industrial-rated outdoor timer is perfect for our 230-volt fountains and aerators. Manufactured by Intermatic, this heavy-duty timer is designed to save energy while extending the life of your Scott Aerator product.

• 40 Amp rating

• Power and status LED indicators

• 24-Hour timer / Skip-a-Day / 7-Day programming

• Captive trippers – trippers cannot be lost

• Auto-Voltage selection 120 VAC through 277 VAC

• Up to 48 ON/OFF operations per 24 hour period or 42 ON/OFF operations per week on "W" models

• DPDT switching configuration standard (2 N.O. and 2 N.C. Contacts)

• Manual 3-way OFF/AUTO/ON override switch

230V Control Panel Information

The Scott Control Panel is GFCI-protected and designed to operate your fountain or aerator along with a light set while only using a single power input. Your 220v or 240v power goes into the box and is split to power a 110v light set and your fountain or aerator from the same source! The Scott Control Panel also features a digital 24-hour timer, so you can optimize run times.

• Polycarbonate enclosure is water-tight and includes mounting feet.

• Lockable, stainless steel enclosure clasps

• Digital timer has memory back-up with no battery to maintain.

• Industrial grade wire terminals.


• Auxiliary output circuit includes a separate 15-amp breaker.

• Remote start/stop circuit terminals are included.

• Can be controlled by a float switch, temp switch, flow switch, or any other device with an NC control circuit.
