Scott Aerator Fountain Motor (3 HP)

Details

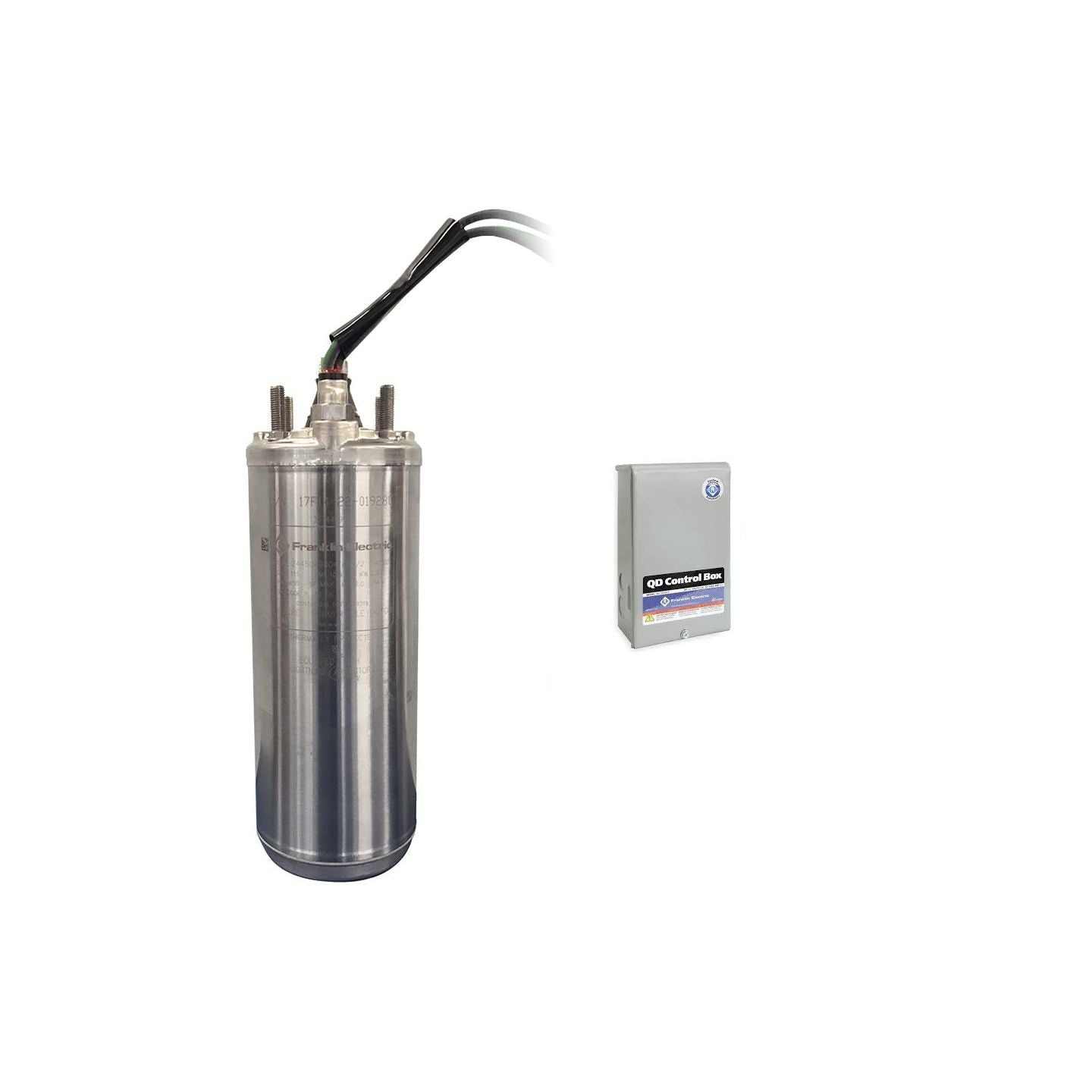

Our three-wire motors (our 2 hp and 3 hp models) require the use of control boxes. Operation of motors without control boxes or with incorrect boxes can result in motor failure and voids the warranty. Control boxes contain starting capacitors, a starting relay, and, in some sizes, overload protectors, running capacitors, and contactors. The control box and and motor are two pieces of one assembly — since a motor is designed to operate with a control box from the same manufacturer.

By default, the motors come with only the motor lead (18") but lengths of power cord are available as an additional option.

Three-phase, 50Hz, and larger motors are available, just ask!

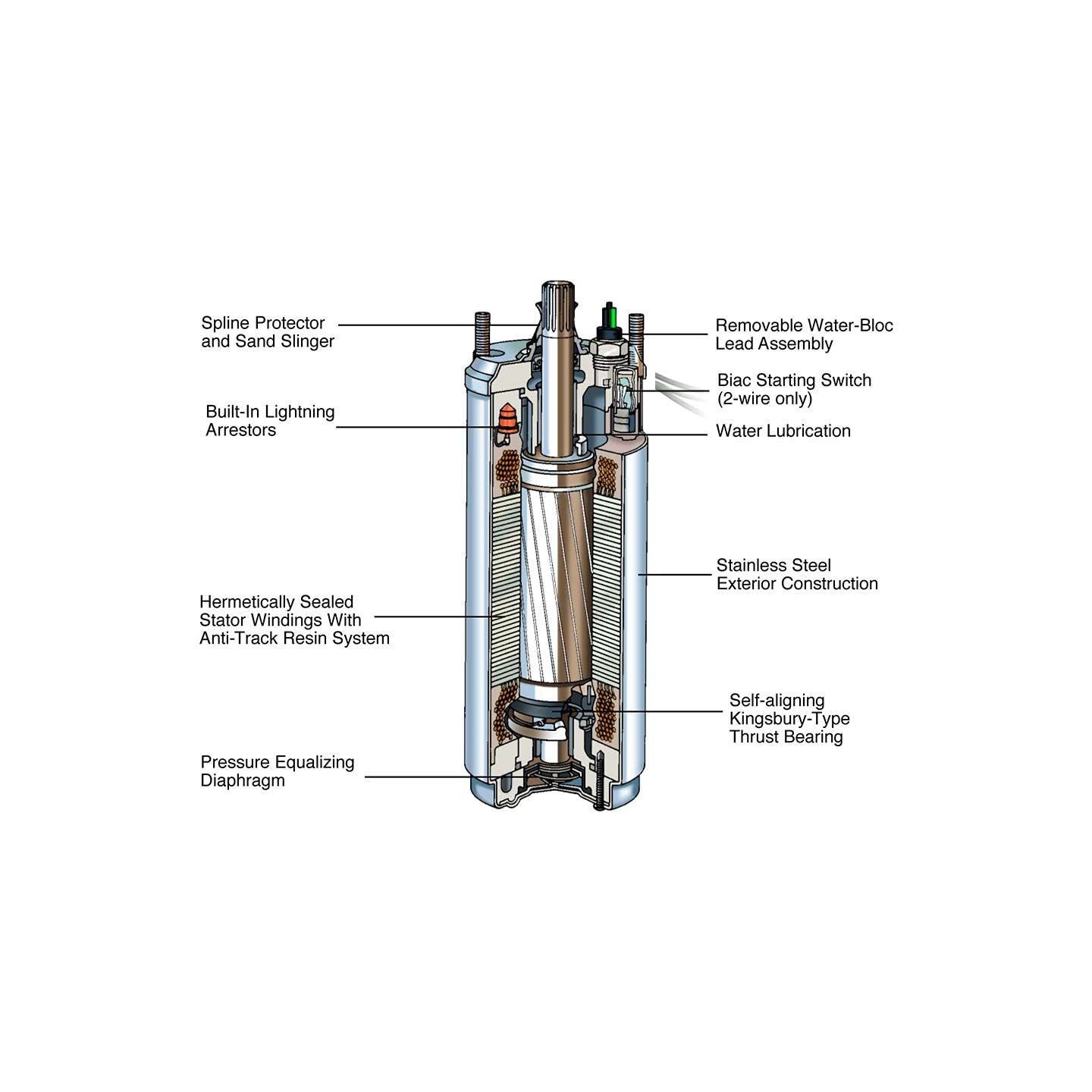

• Corrosion-resistant, all stainless steel exterior construction.
• Stainless steel splined shaft.
• Hermetically-sealed windings.
• Anti-track self-healing resin system.
• Water lubrication.
• Filter check valve.
• Kingsbury-type thrust bearing.
• Pressure equalizing diaphragm.
• Built-in lightning arrestors (all single-phase; 200 and 230 volt three-phase).
• Removable “water-bloc” lead installed — contact us for additional leads.
• UL 778 recognized (North American voltages).
• CSA certified.
• ANSI/NSF 61 certified.
• NEMA mounting dimensions.
• One year warranty.
