Kasco VFX Series Aerating Pond Fountain
Choose Motor Strength:
Choose Motor Strength
Choose Cord Length:
Choose Cord Length
Quantity:

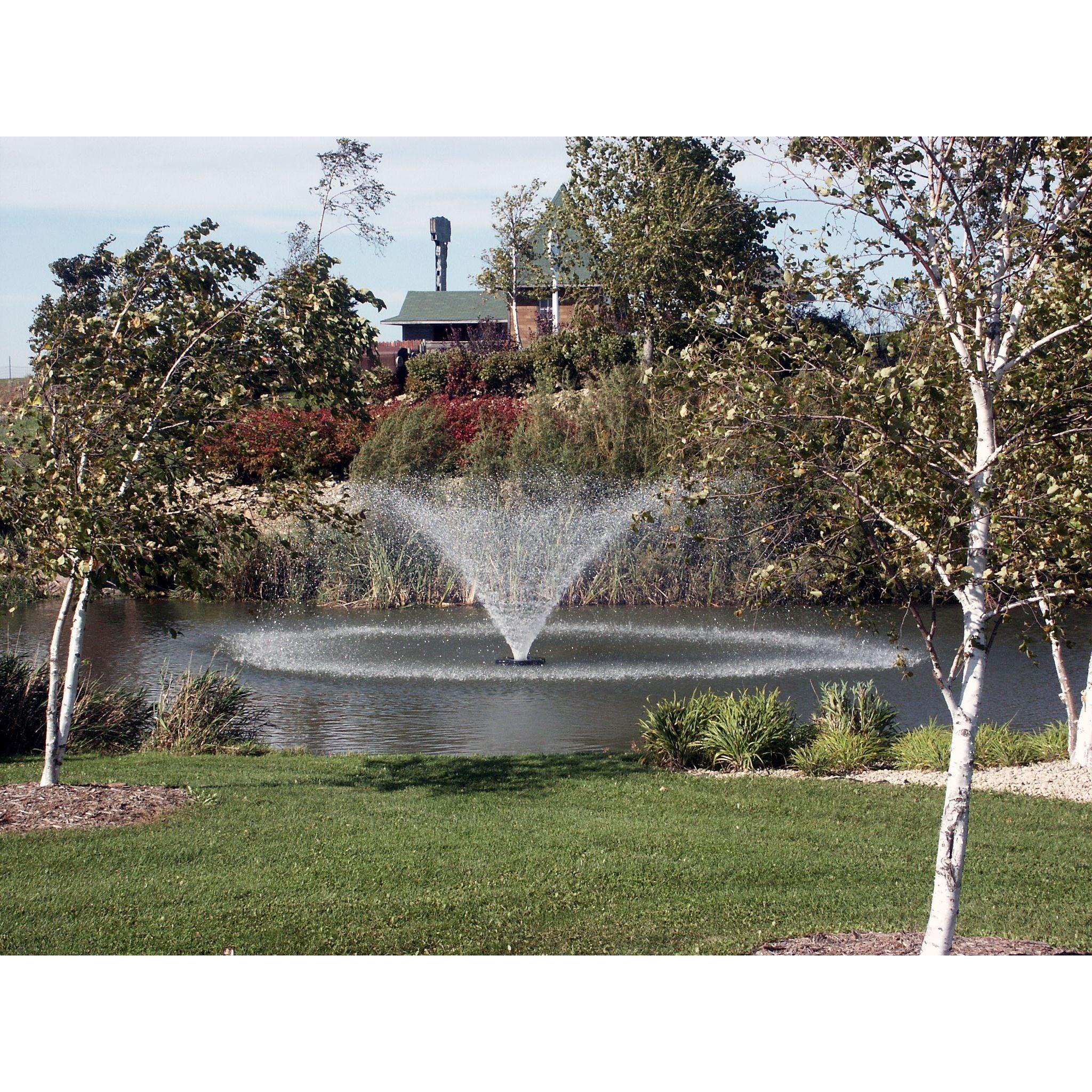

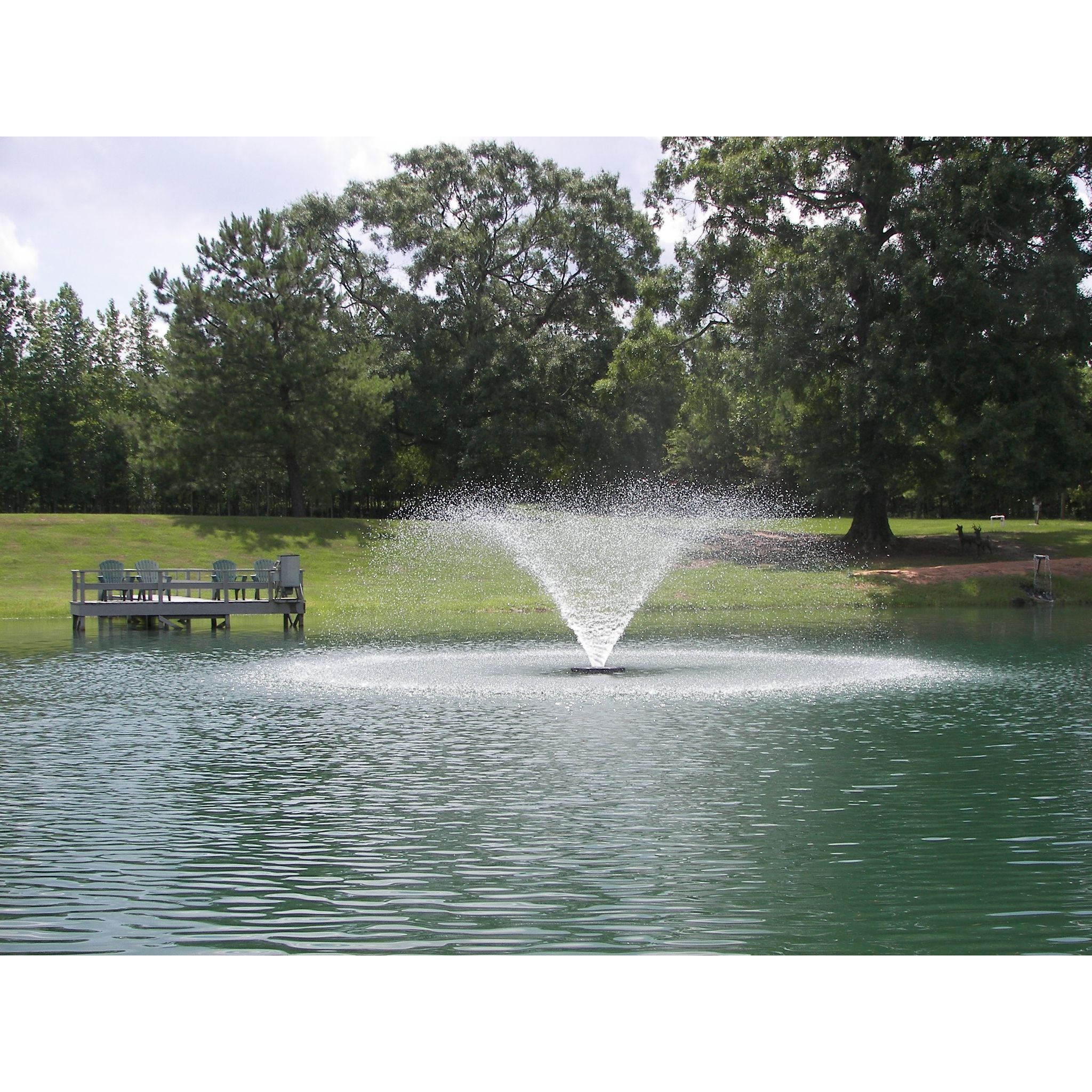

Kasco VFX Series Aerating Fountain:
- Floating fountain for ponds and lakes, provides powerful aeration with a stunning display.

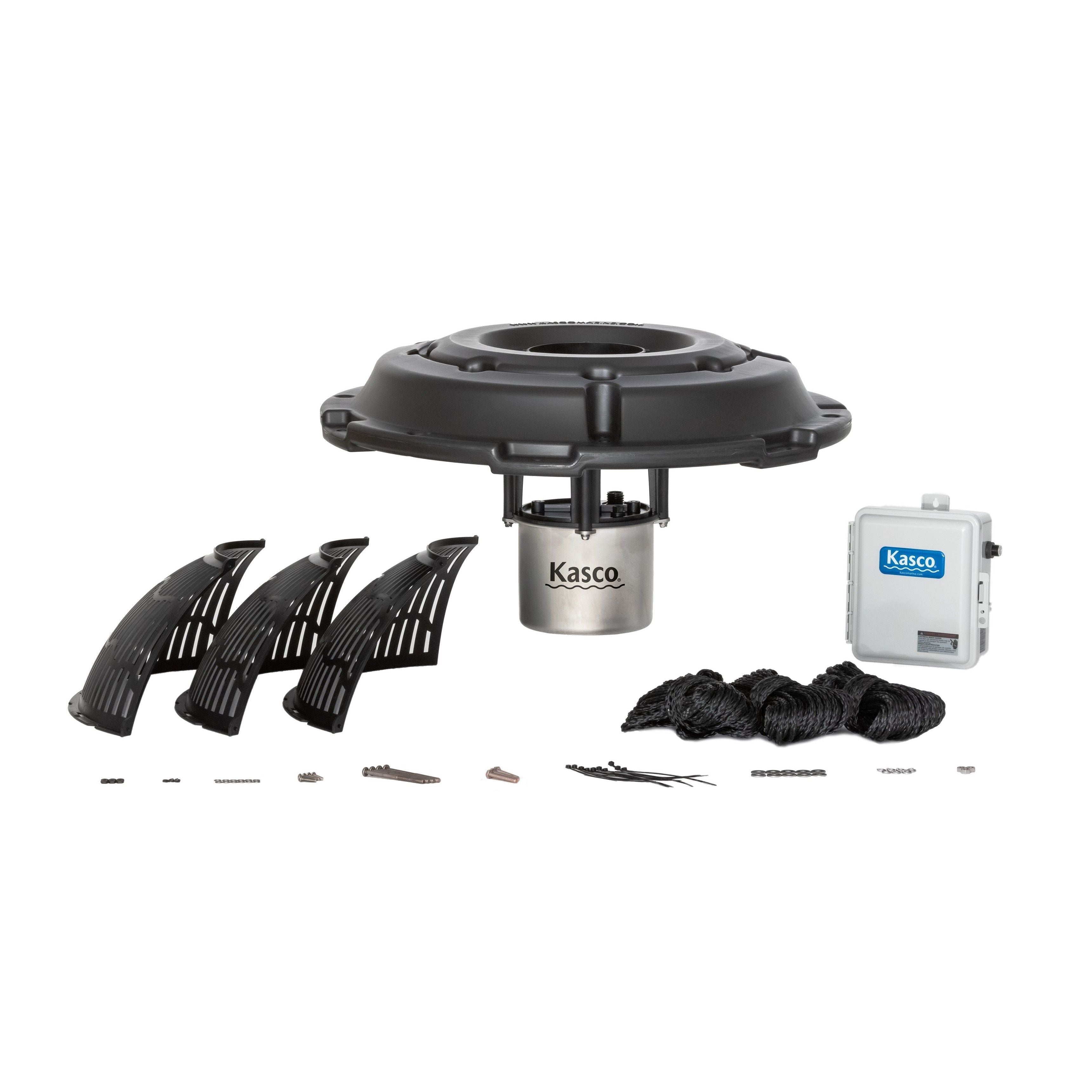

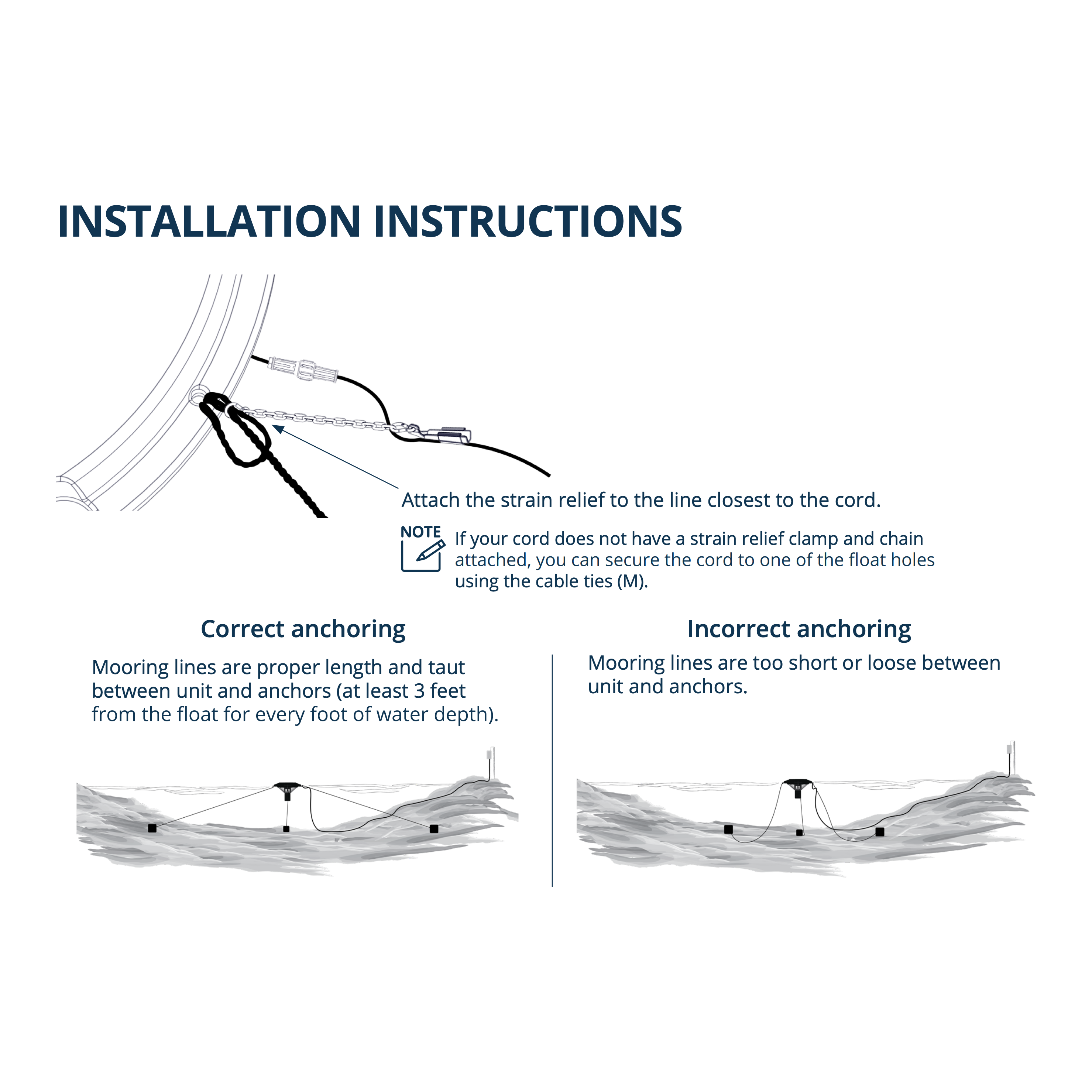

- Includes pump, control panel, float, filter screen, anchoring rope and your choice of power cord.
- Powered by a durable submersible motor, provides years of no-hassle operation.
- Designed for shallow water operation, works in as little as 15 inches of depth.
- 120V motors are plugged into a standard residential outlet.
- 240V motors are hardwired directly to a panel.
- Three-phase motors are available, contact us for details.
- Backed by a 2 to 3-Year Motor Warranty. Built in Prescott, Wisconsin.

Optional LED Light Kits:
- Fountain lights can be purchased now or added later, lights easily attach onto the fountain float.
- Fountain lights include their own power cord and plug into the provided control panel.
- Warm white or color changing lights are available. The colored lights feature endless combinations to choose from.
- Both light kit options include a programmable timer and the color-changing lights include a remote control.
- 3-Bulb light kits are recommended for 1 HP or less.
- 6-Bulb light kits are recommended for 2 HP or more.

Included Fountain Timer:
- Every Kasco fountain includes a control panel timer.
- The timer controls both the fountain and optional light kits.
- Available in 120V or 240V configurations.
- Allows for multiple on and off settings.
- Kasco control panels feature built-in GFCI protection.

Fountain Specifications:
1/2 HP | 3/4 HP | 1 HP | 2 HP | 5 HP | |

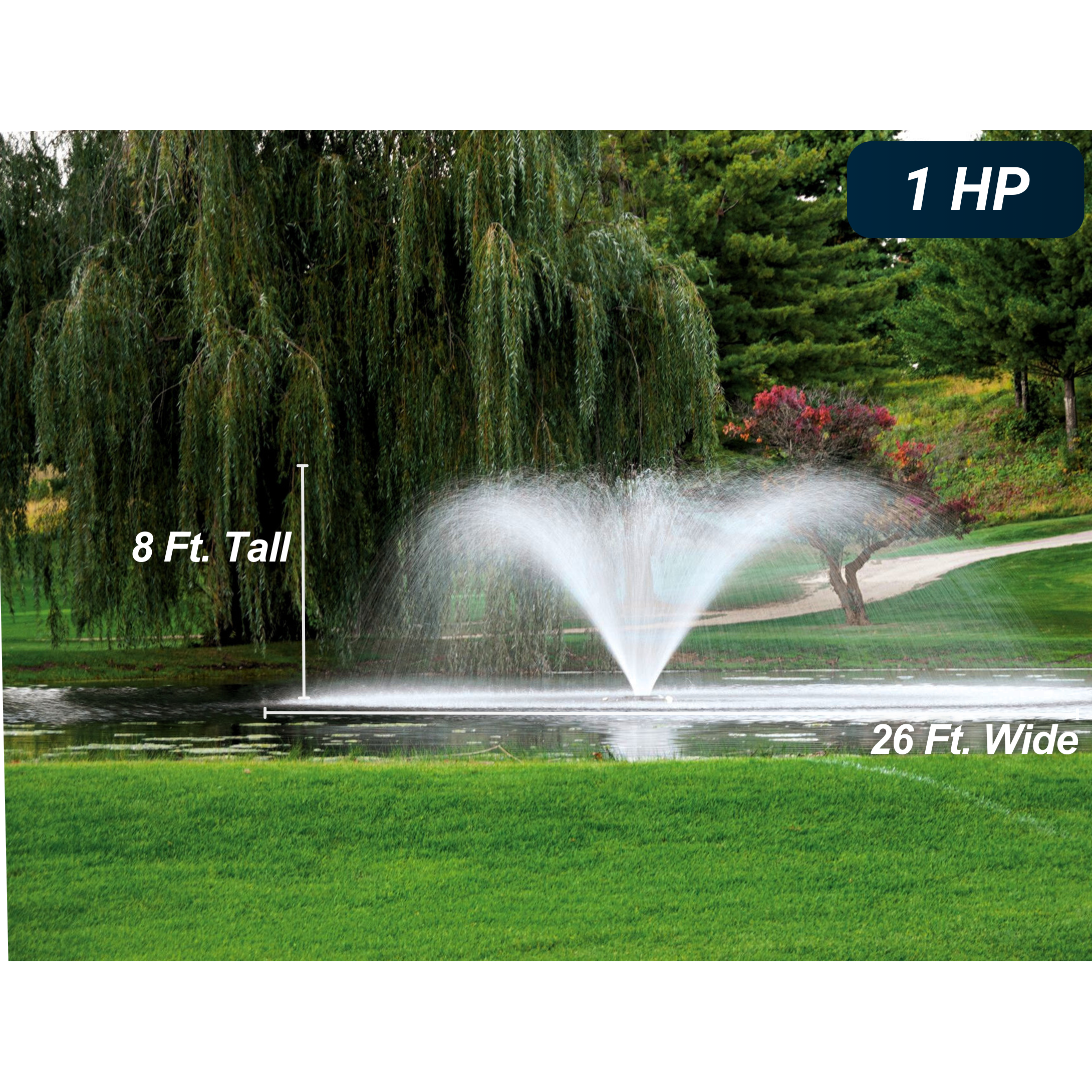

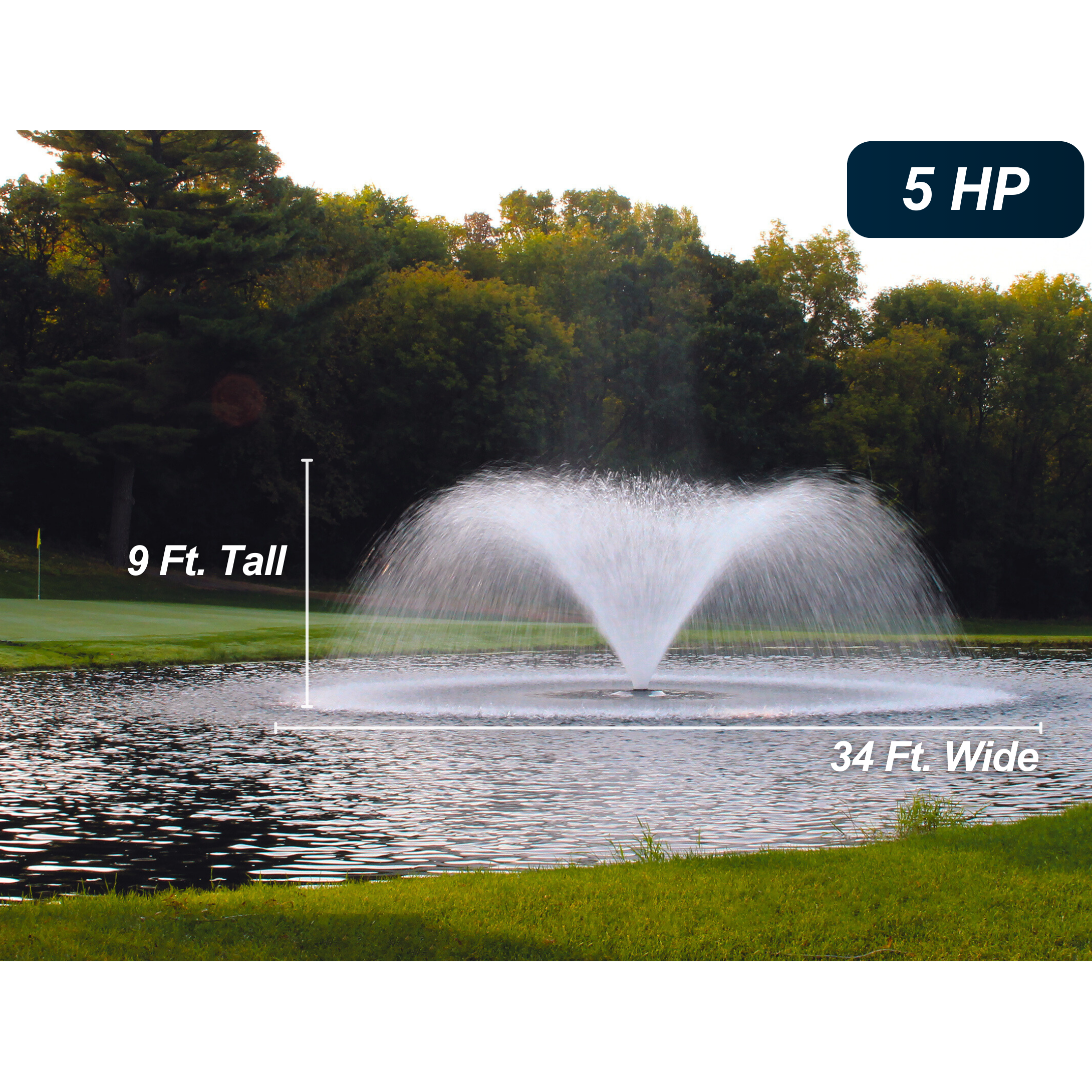

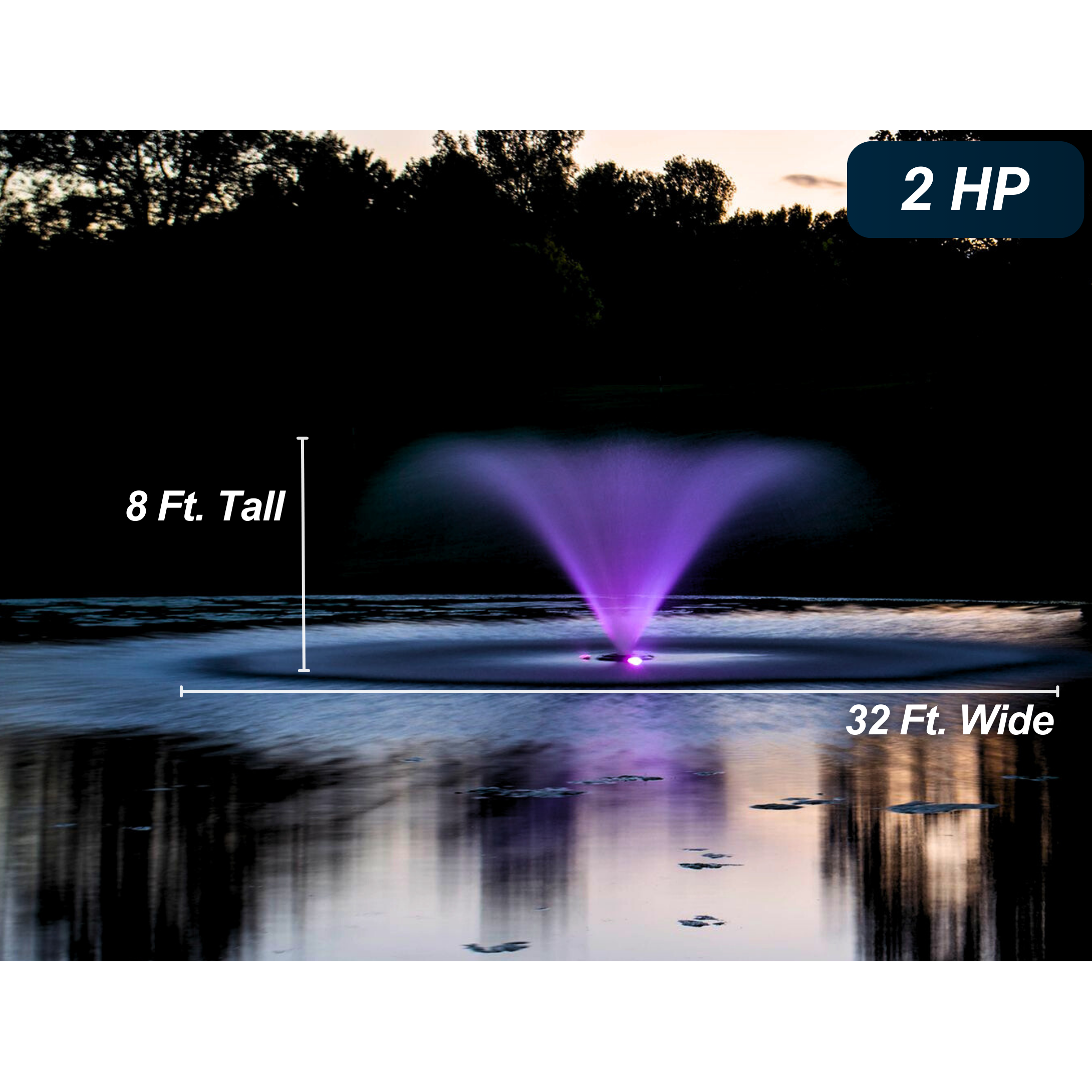

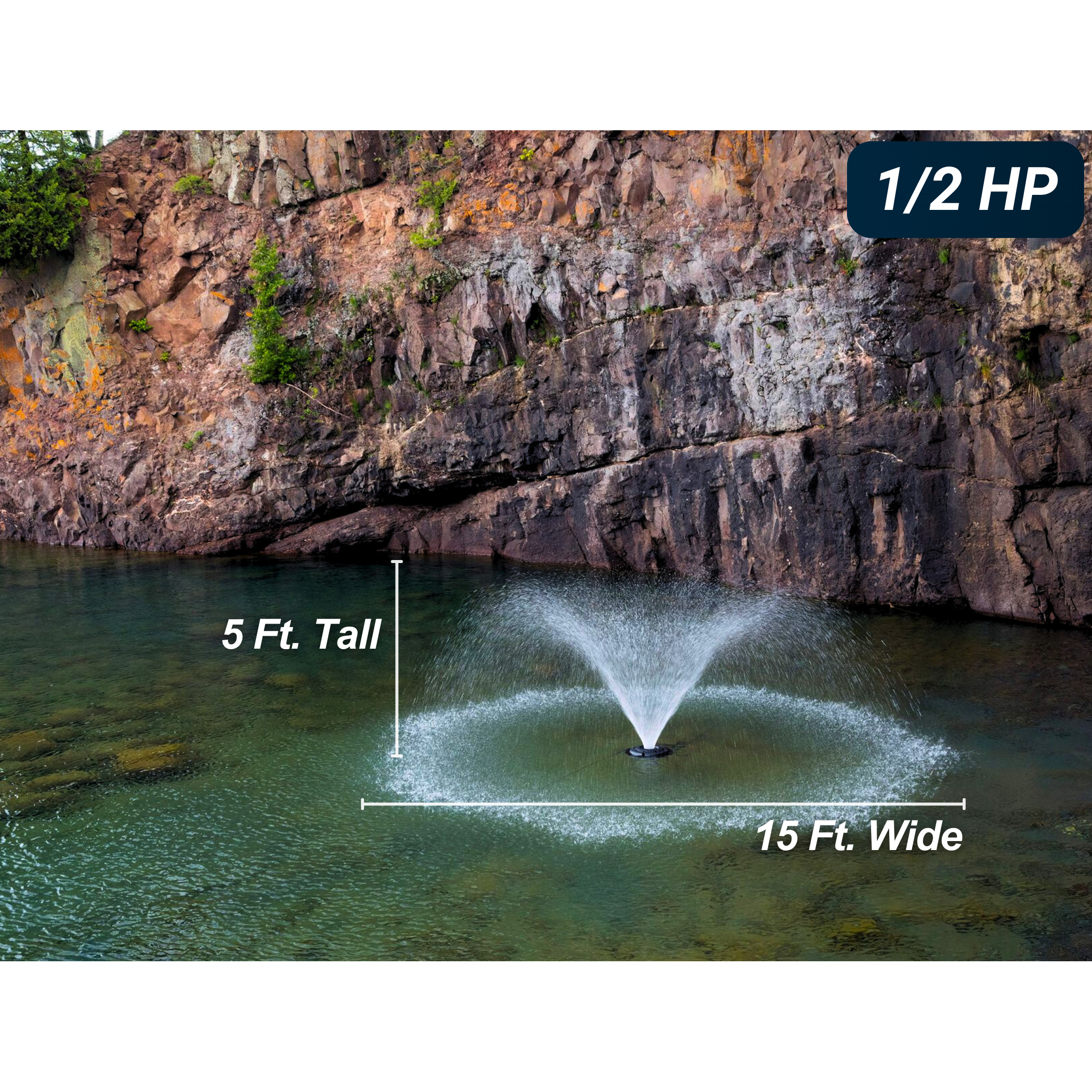

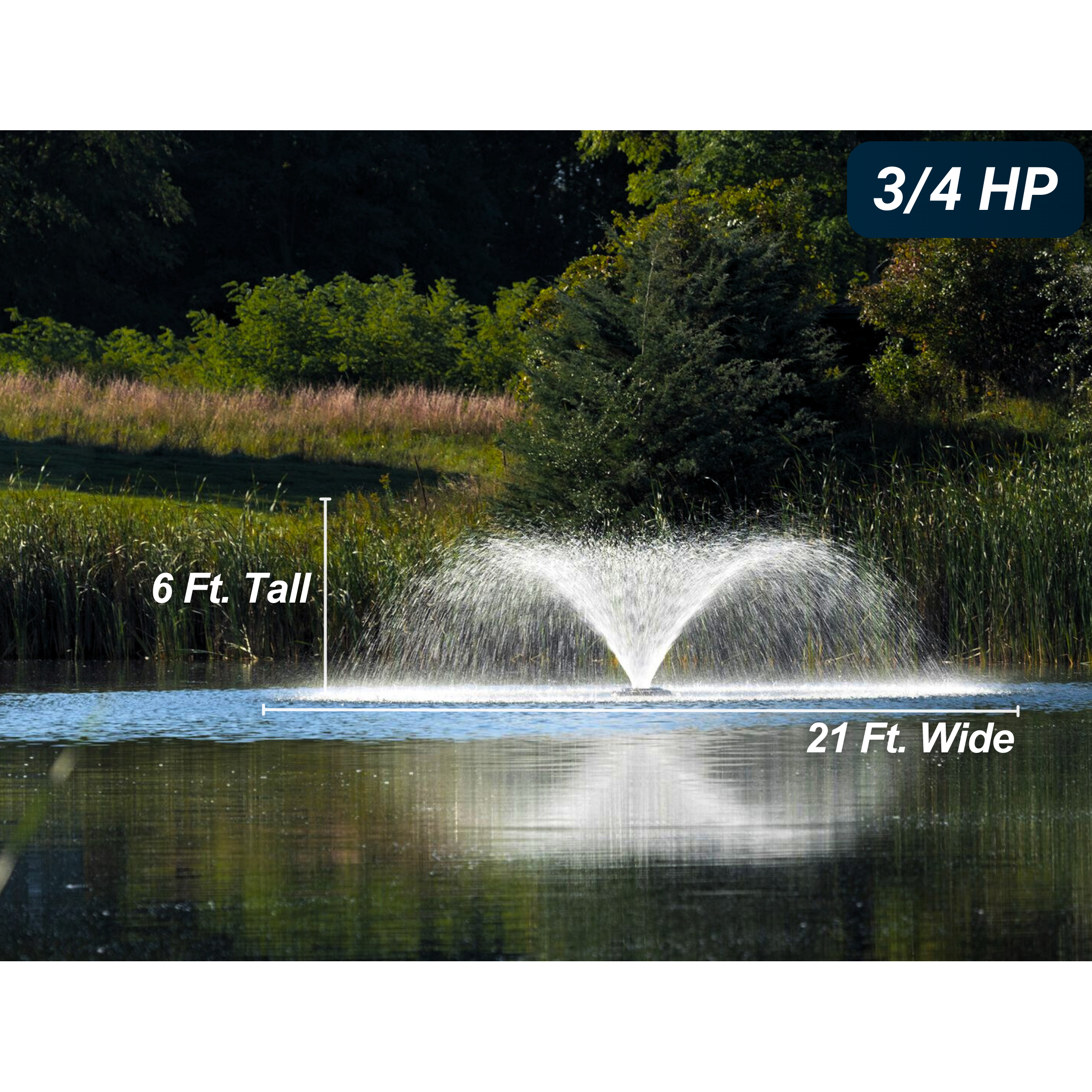

Spray Dimensions | 5 Ft. Tall x 15 Ft. Wide | 6 Ft. Tall x 21 Ft. Wide | 8 Ft. Tall x 26 Ft. Wide | 8 Ft. Tall x 32 Ft. Wide | 9 Ft. Tall x 34 Ft. Wide |

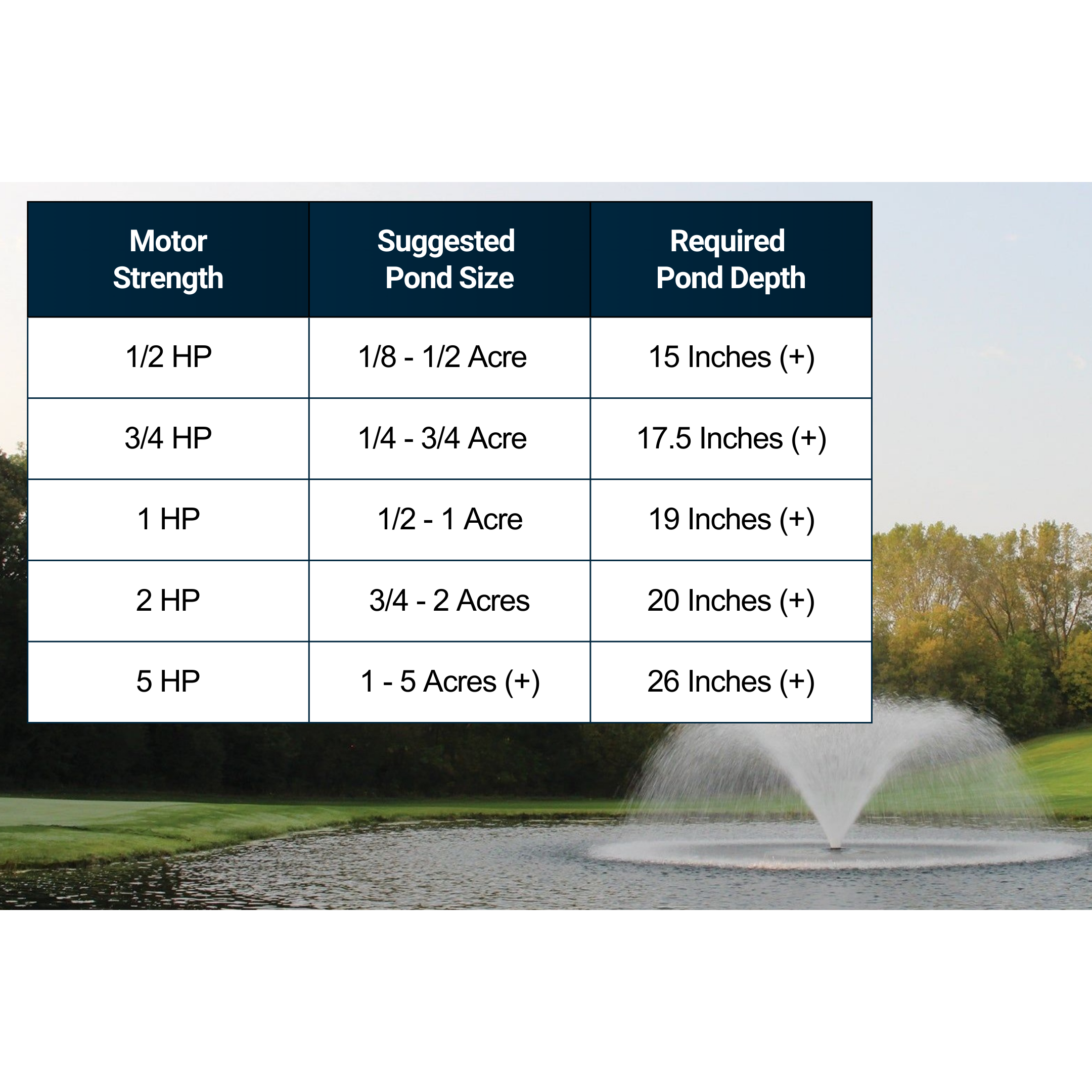

Suggested Pond Size | 1/8 - 1/2 Acre | 1/4 - 3/4 Acre | 1/2 - 1 Acre | 1 - 2 Acres | 1 - 5 Acres |
Minimum Depth | 15 Inches | 17.5 Inches | 19 Inches | 20 Inches | 26 Inches |
Electrical - 120V | 5.6A | 7.3A | 11.3A | 240V Only | 240V Only |
Electrical - 240V | 120V Only | 3.7A | 5.7A | 11A | 20A |
Motor Warranty | 2-Year Warranty | 2-Year Warranty | 2-Year Warranty | 3-Year Warranty | 3-Year Warranty |
