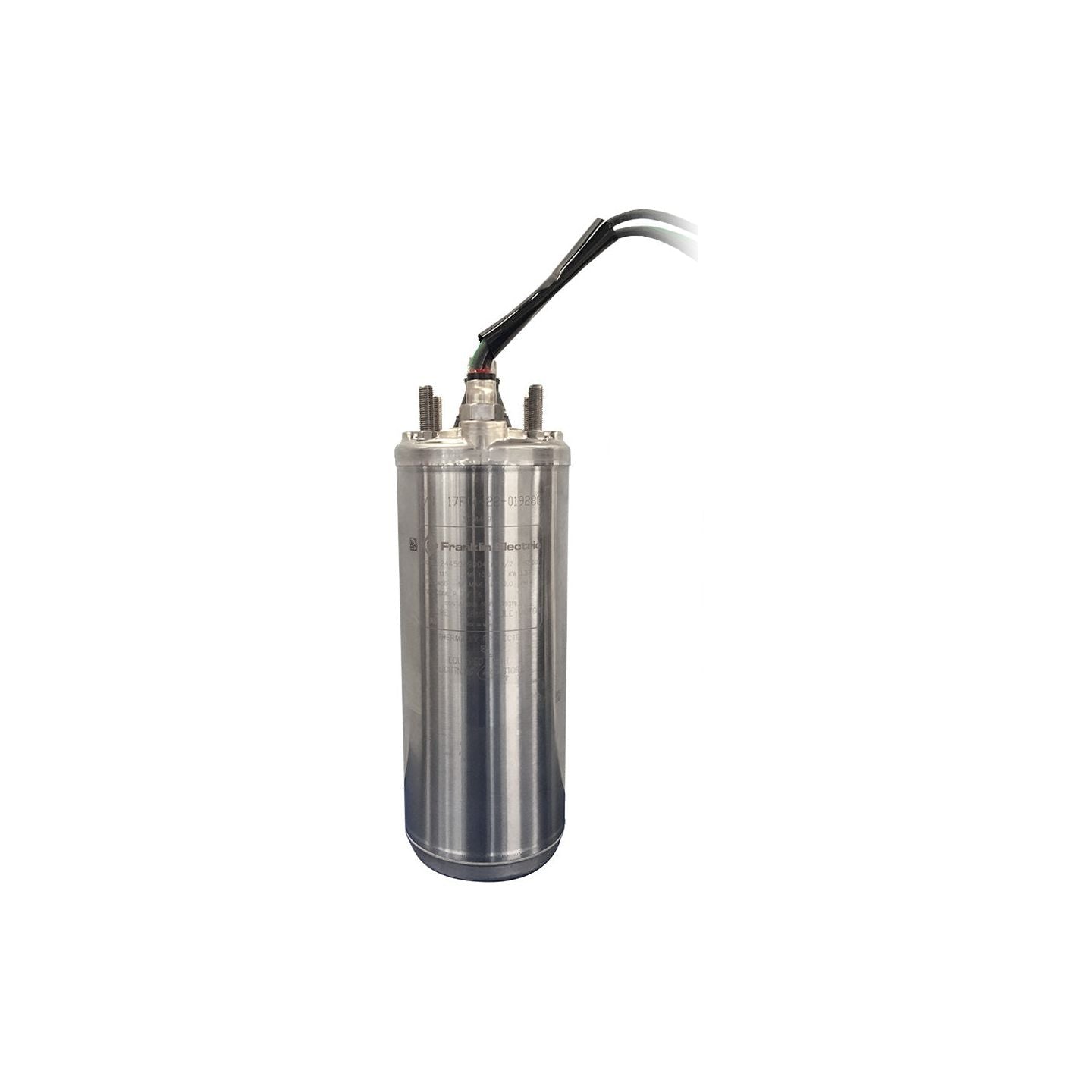

Scott Aerator Fountain Motor (1 HP)

Details

Our two-wire motors utilize a split-phase design with integral starting components and on-winding thermal overload protection. Motor sizes below 2 hp do not require a control box. They feature a two-wire BIAC starting switch which provides reverse-impact torque to aid starting in adverse conditions.

By default, the motors come with only the motor lead (18") but lengths of power cord are available as an additional option.

Three-phase, 50Hz, and larger motors are available, just ask!

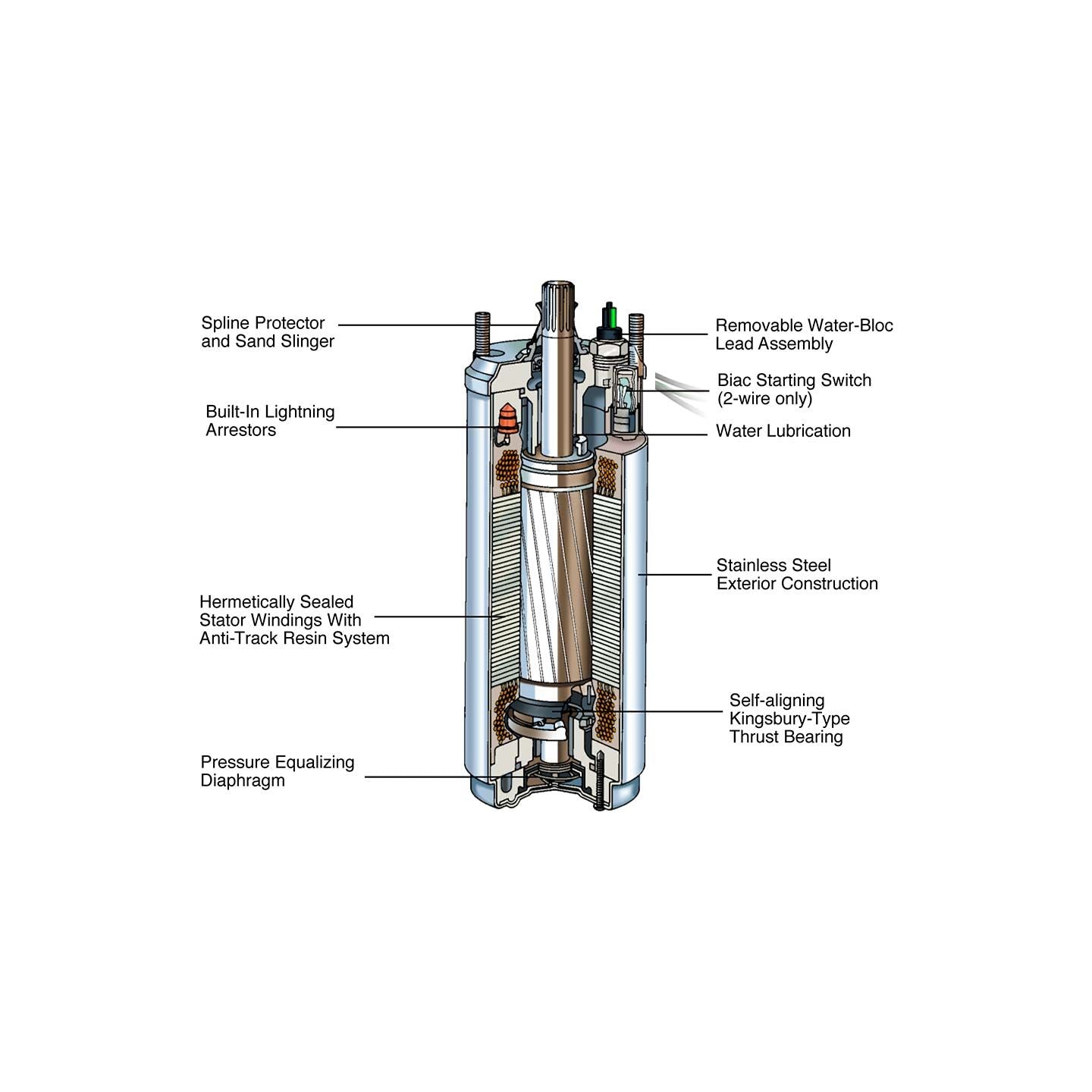

• Corrosion-resistant, all stainless steel exterior construction.
• Stainless steel splined shaft.
• Hermetically-sealed windings.
• Anti-track self-healing resin system.
• Water lubrication.
• Filter check valve.
• Kingsbury-type thrust bearing.
• Pressure equalizing diaphragm.
• Built-in lightning arrestors (all single-phase; 200 and 230 volt three-phase).
• Removable “water-bloc” lead installed — contact us for additional leads.
• UL 778 recognized (North American voltages).
• CSA certified.
• ANSI/NSF 61 certified.
• NEMA mounting dimensions.
• One year warranty.
